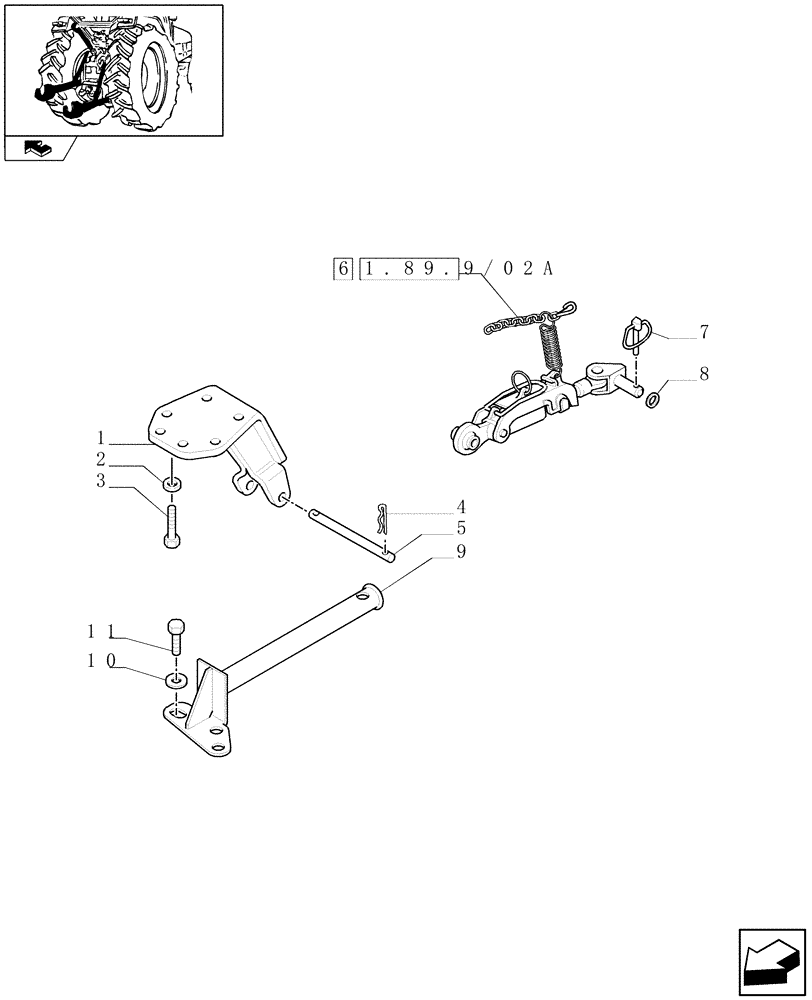

Запчасти Case IH MAXXUM 115 (1.89.9/02) - AUTOMATIC LINKAGE STABILIZER (VAR.330949-331949) (09) - IMPLEMENT LIFT

1

5154775

SUPPORT

2шт.

2

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

8шт.

3

15984324

SCREW,Hex, M18 x 1.5 x 50mm, Cl 8.8, Full Thd

8шт.

4

10798404

COTTER PIN,6.3mm Dia x 40.00mm, DAC

4шт.

5

5125861

PIN,19mm OD x 105mm L

2шт.

6

87391930

STABILIZER

2шт.

7

47125579

LINCH PIN,11.5mm OD

ROLL PIN

2шт.

8

562106

WASHER,25.50mm ID x 45.00mm OD

2шт.

9

87709207

SUPPORT

1шт.

Automatic Stabilizers, VAR.330949

1шт.

9

87709208

SUPPORT

1шт.

Automatic Stabilizers, VAR.330949

1шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

Automatic Stabilizers, VAR.330949

1шт.

11

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

2шт.

Automatic Stabilizers, VAR.330949

1шт.
