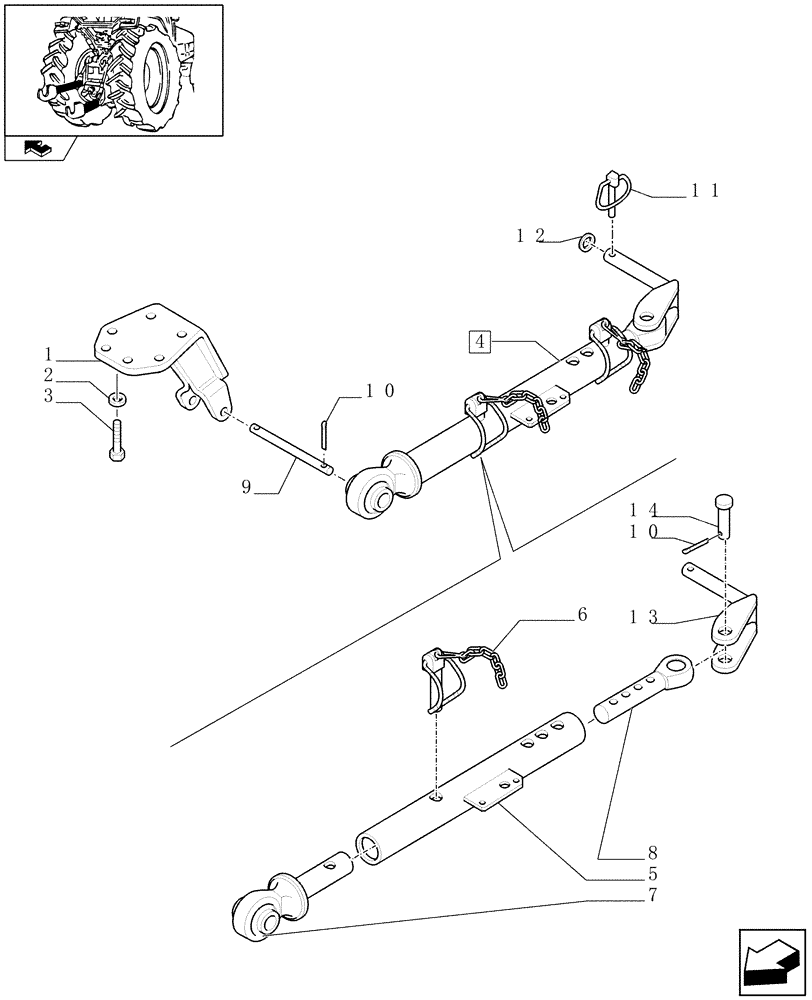

Запчасти Case IH MAXXUM 115 (1.89.9/01) - MECHANICAL STABILIZERS PIN TYPE ADJUSTMENT (VAR.330945) (09) - IMPLEMENT LIFT

1

5154775

SUPPORT

2шт.

2

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

8шт.

3

15984324

SCREW,Hex, M18 x 1.5 x 50mm, Cl 8.8, Full Thd

8шт.

4

87392046

STABILIZER

ASSY

2шт.

5

87392049

TUBE

1шт.

6

5198385

LINCH PIN,15mm OD

2шт.

7

87304920

LIFT LINK END ASSY

1шт.

8

87309293

ROD

1шт.

9

5125861

PIN,19mm OD x 105mm L

2шт.

10

10798404

COTTER PIN,6.3mm Dia x 40.00mm, DAC

5шт.

11

47125579

LINCH PIN,11.5mm OD

ROLL PIN

2шт.

12

562106

WASHER,25.50mm ID x 45.00mm OD

D=28.5 x 45 x 4

2шт.

13

87382848

FORK

1шт.

14

47134675

PIN,26mm OD x 77mm L

1шт.
