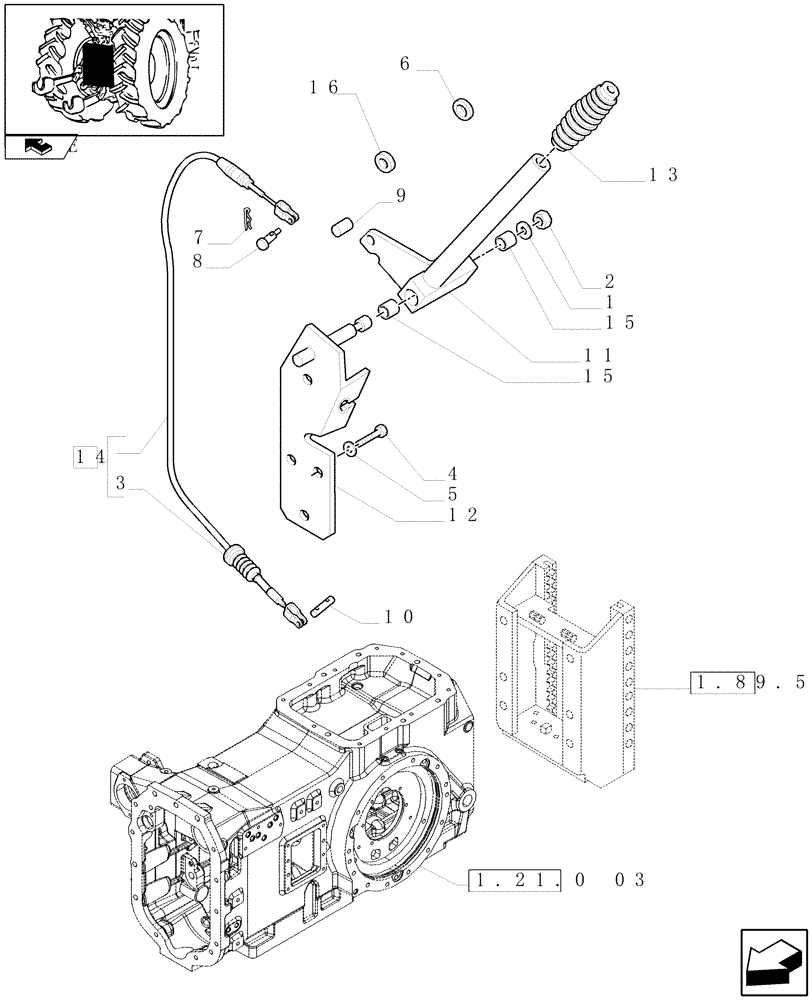

Запчасти Case IH MAXXUM 115 (1.89.5/06) - AUTOMATIC PICK UP/ DROP DOWN HITCH WITH SWINGING DRAWBAR - CONTROL LEVER (VAR.331943) (09) - IMPLEMENT LIFT

1

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

2

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

3

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

4

13632821

CAPTIVE WASHER SCREW,M8 x 25mm

3шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

10571371

LOCK WASHER,M4

2шт.

7

82033370

COTTER PIN,10mm OD

1шт.

8

81868749

PIN,7.9mm OD x 15.08mm L

15/16" x 19/32"

1шт.

9

87330882

CAP,End, 23.80mm ID x 25mm L

D=23.8

1шт.

9

87330878

CAP,9.50mm ID x 13.30

D=9.5

1шт.

10

83957394

PIN,0.072" x 0.82"

1шт.

11

87665892

LEVER

1шт.

12

87531029

SUPPORT

W/CAB

1шт.

13

87666034

HANDLE GRIP

Black

1шт.

14

87307765

CABLE,1650mm L

1шт.

15

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

2шт.

16

81822628

CIRCLIP,1/2"

1шт.
