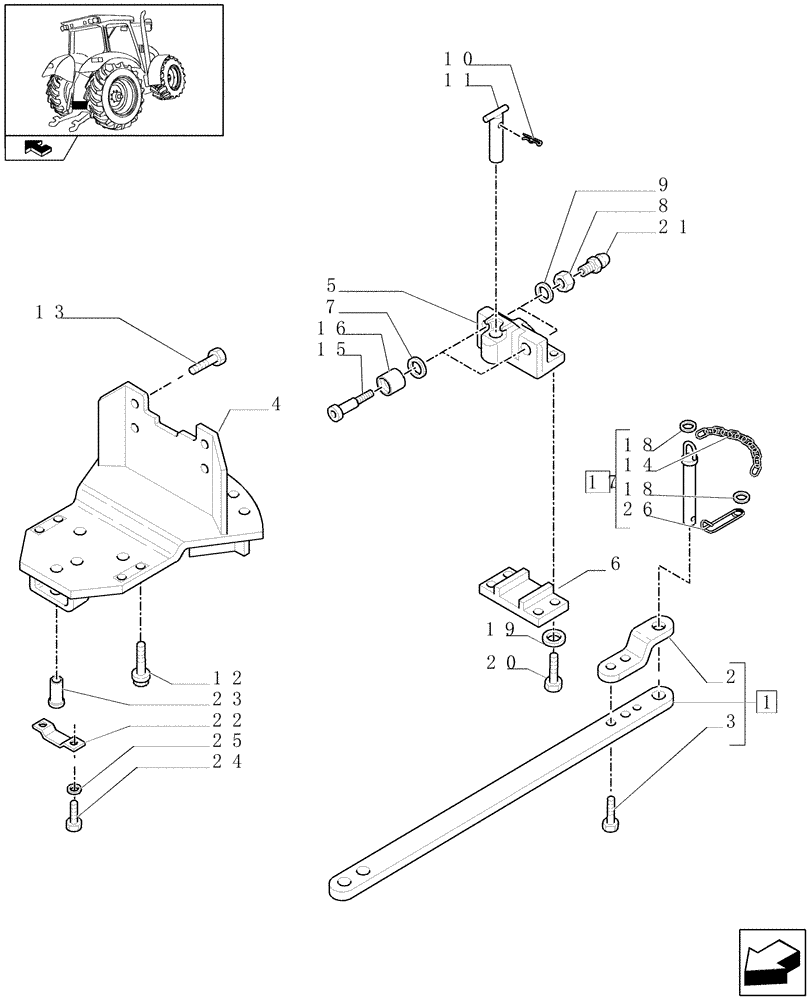

Запчасти Case IH MAXXUM 115 (1.89.0/04) - INDIPENDENT SWINGING DRAWBAR WITH ROLLERS (VAR.330915) (09) - IMPLEMENT LIFT

1

82027971

DRAWBAR

Incl. 2, 3

1шт.

2

82026931

SUPPORT,254mm L x 75mm W x 30mm Thk, 70mm Offset

1шт.

3

11125234

SCREW,Hex, M20 x 75mm, Cl 10.9

2шт.

4

82020184

SUPPORT

1шт.

5

84126360

SUPPORT

1шт.

6

82027968

PLATE

1шт.

7

83954373

WASHER,1.11" ID x 1.57" OD x 0.28" Thk

2шт.

8

83927122

NUT,Hex, 3/4"-16, 0.665" High, G5

2шт.

9

83917225

LOCK WASHER,Helical Spring, 0.766" ID x 1.285" OD x 0.226"

2шт.

10

82029383

PIN,26mm OD x 115.5mm L

1шт.

11

82026318

COTTER PIN,1/8 x 2 5/16

Spring Retainer, 1/8" x 2-5/16"

1шт.

12

82020186

BOLT,Flng, M16 x 1.5 x 120mm, Cl 12.9

4шт.

13

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

4шт.

14

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

15

83954368

BOLT,28.05mm OD x 126.64mm L

2шт.

16

83954370

ROLLER,56.9mm OD x 60.2mm L

2шт.

17

87579063

HITCH PIN,32mm OD x 182mm L

ASSY, Incl. 18

1шт.

18

44901192

SNAP RING,25mm ID

2шт.

19

10517274

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

4шт.

20

16218474

BOLT,Hex, M16 x 1.5 x 90mm, Cl 12.9

4шт.

21

83416242

LUBE NIPPLE,Straight, 1/8"-27 x 0.66"

2шт.

22

82021060

PLATE

1шт.

23

82027974

PIN

1шт.

24

81821509

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

25

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

2шт.

26

5152004

HAIR PIN COTTER,195mm L

1шт.
