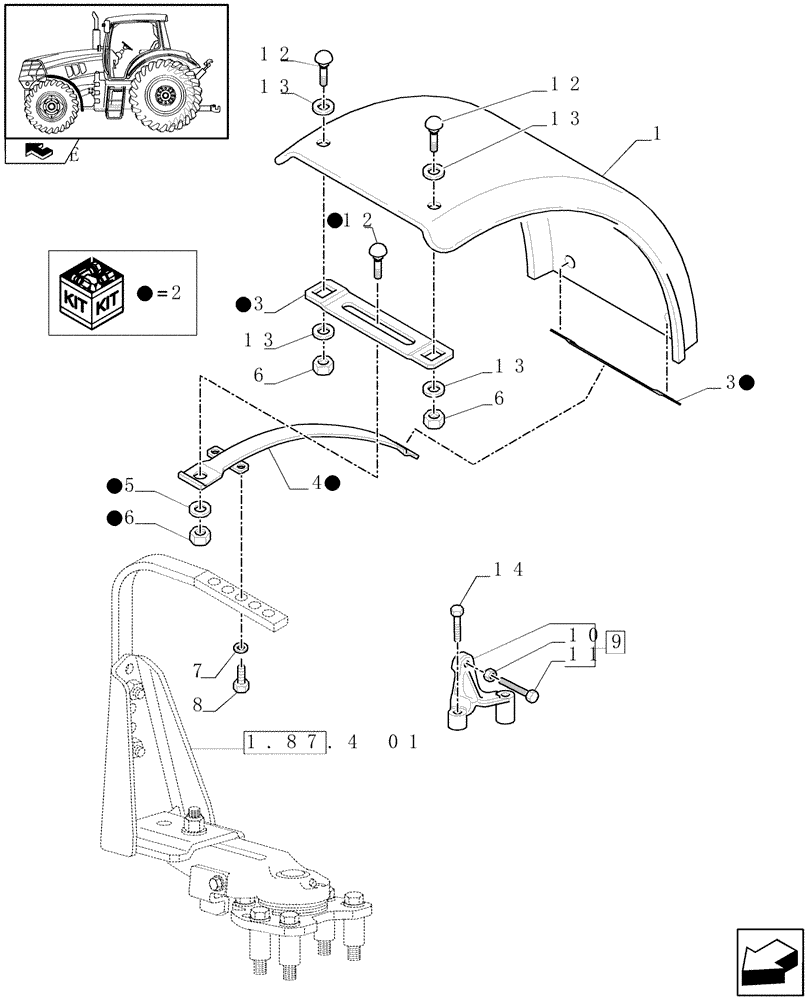

Запчасти Case IH MAXXUM 115 (1.87.4[02]) - DYNAMIC FRONT FENDERS - FENDERS AND BRACKETS (VAR.333884-334884-335884) (08) - SHEET METAL

1

87616388

MUD DEFLECTOR,420mm W

2шт.

Front Fender 420mm Dynamic, VAR.333884

1шт.

1

87616389

FRONT FENDER,480mm W

2шт.

Front Fender 480mm Dynamic, VAR.334884

1шт.

1

87616390

MUD DEFLECTOR,540mm W

2шт.

Front Fender 540mm Dynamic, VAR.335884

1шт.

2

87659018

SUPPORT

2шт.

3

82021040

SUPPORT

2шт.

4

87616362

BRACKET

1045mm, Serial Range: center-center

1шт.

5

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

10шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

2шт.

7

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

8

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

9

87475473

STOP

RH

1шт.

9

87475476

STOP

LH

1шт.

10

11701721

NUT,M10, Cl 10

9шт.

11

15215021

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

12

13183201

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 4.8

10шт.

13

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

8шт.

14

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

2шт.
