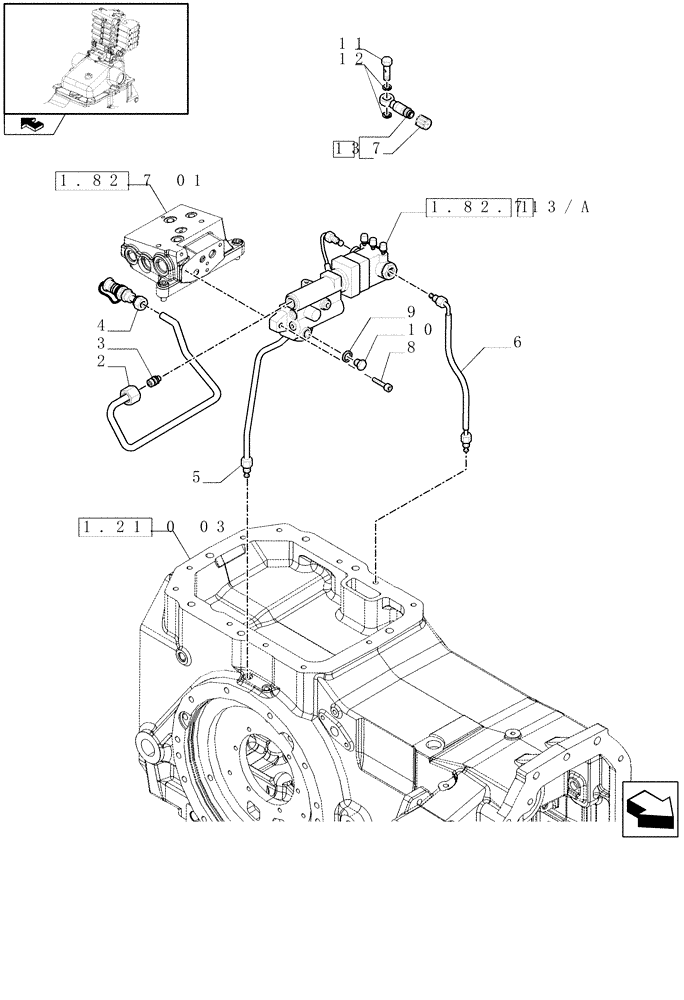

Запчасти Case IH MAXXUM 115 (1.82.713) - UNIVERSAL TRAILER BRAKE VALVE - VALVE PIPES (VAR.330718) (07) - HYDRAULIC SYSTEM

1

5192069

BRAKE VALVE

1шт.

2

47134002

HYD TUBE

1шт.

3

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

4

5144514

HYDRAULIC VALVE

1шт.

5

5196663

FLEXIBLE HOSE

RH

1шт.

6

5196661

FLEXIBLE HOSE,4.75mm ID x 350mm L

LH

1шт.

7

44995074

PLUG,M8 x 1.0

1шт.

8

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

8

14359424

SCREW,M8 x 75mm, Cl 8.8

2шт.

9

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

10

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

11

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

12

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

13

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.
