Запчасти Case IH MAXXUM 115 (1.82.7/01[03]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - VALVE SECTIONS AND QUICK COUPLERS (VAR.330862-338851) (07) - HYDRAULIC SYSTEM

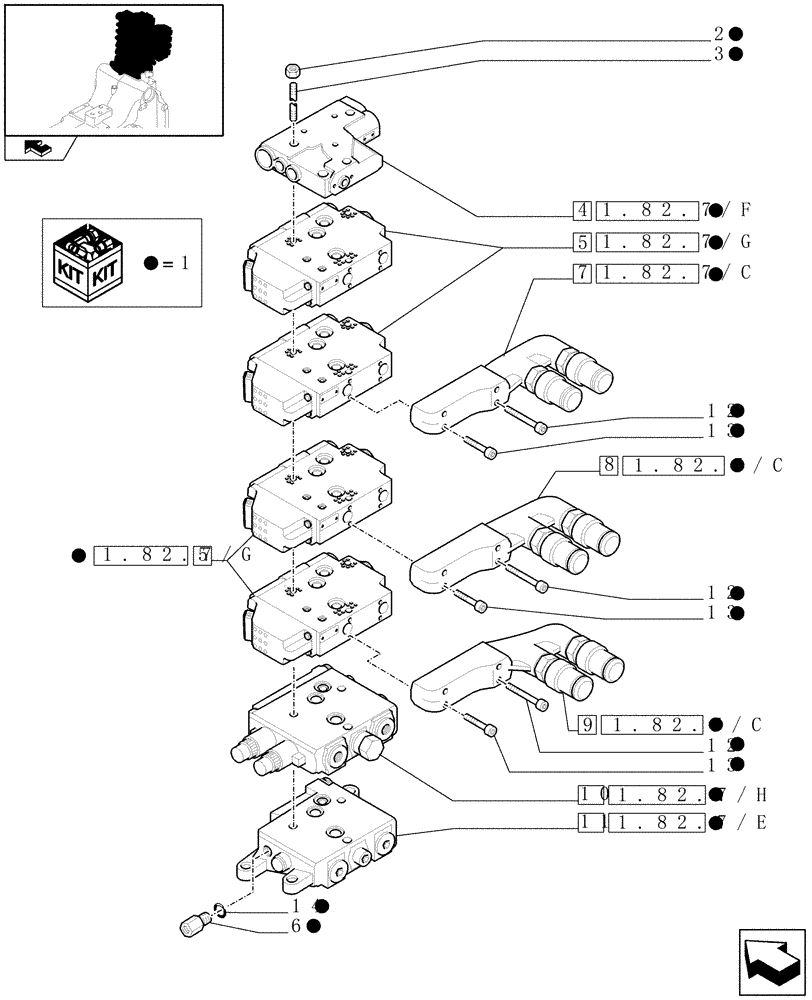

Схема запчастей Case IH MAXXUM 115 - (1.82.7/01[03]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - VALVE SECTIONS AND QUICK COUPLERS (VAR.330862-338851) (07) - HYDRAULIC SYSTEM
2
1
3
1
1
7
13
1
9
1.82.7/h
1
1
5
1
1
4
1.82.7/c
1.82.7/f
1
10
1
12
6
11
home
8
1
1.82.7/c
13
1
1
1.82.7/c
12
5
1
1
1.82.7/e
1.82.7/g
1.82.7/g
1
1
1
13
1
1
14
12

Артикул

Название

Примечание

Количество

1

84266085

CONTROL VALVE

ASSY

1шт.

2

5195169

NUT,M8

3шт.

3

47129473

THREADED TIE-ROD

3шт.

4

84230200

HYD VALVE SECTION

ASSY

1шт.

5

84230181

HYD VALVE SECTION

ASSY

4шт.

6

5191704

CHECK VALVE

Incl. 14

1шт.

7

87381964

QUICK MALE COUPLING

ASSY

1шт.

8

87381963

QUICK MALE COUPLING

ASSY

1шт.

9

87381958

QUICK MALE COUPLING

ASSY

1шт.

10

84175671

VALVE SECTION

ASSY

1шт.

11

87730706

CONTROL VALVE

ASSY

1шт.

11

87730706R

REMAN-HYD VALVE

1шт.

11

87730706C

CORE-VALVE HYD

Return Number

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

Выбрано товаров: 16
