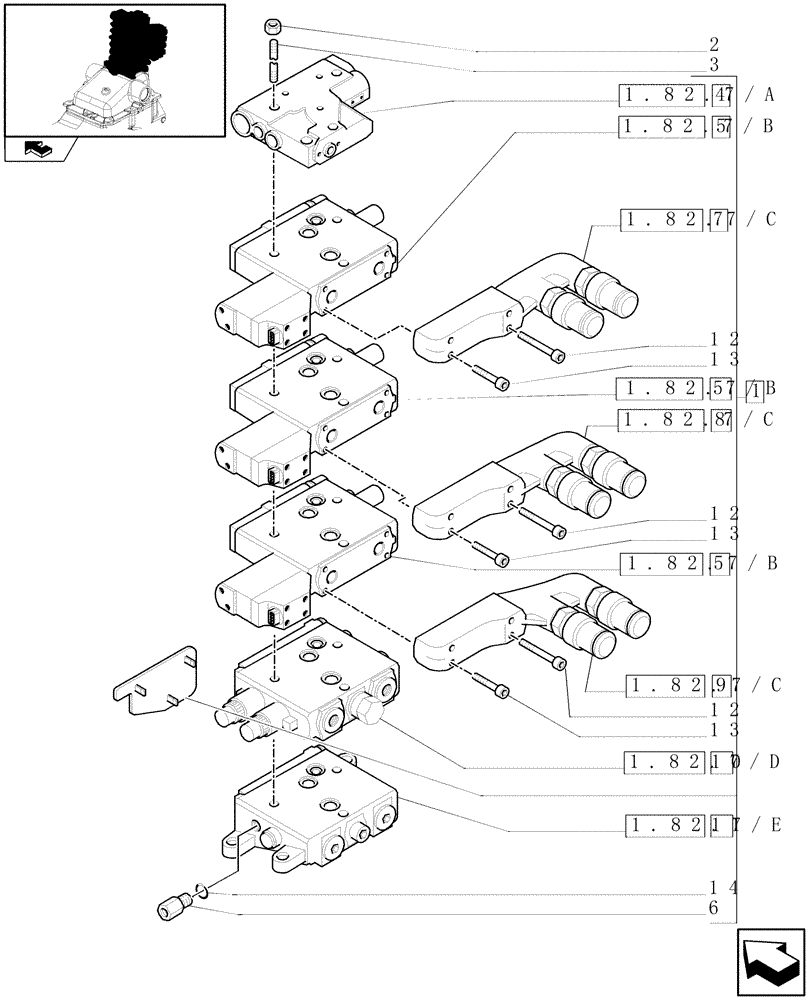

Запчасти Case IH MAXXUM 115 (1.82.7[02]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - VALVE SECTIONS AND QUICK COUPLERS (07) - HYDRAULIC SYSTEM
![Схема запчастей Case IH MAXXUM 115 - (1.82.7[02]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - VALVE SECTIONS AND QUICK COUPLERS (07) - HYDRAULIC SYSTEM](https://partsell.ru/storage/images/caseih/922283.png)
6
12
7
9
14
12
13
2
3
12
10
1.82.7/c
5
13
11
1.82.7/b
home
1.82.7/b
1.82.7/a
1.82.7/b
1.82.7/d
1.82.7/e
1.82.7/c
5
8
4
1.82.7/c
5
1
13
№
Артикул
Название
Примечание
Количество
1
87311426
CONTROL VALVE
ASSY
1шт.
2
5195169
NUT,M8
3шт.
3
47131731
TIE-ROD,235mm L
3шт.
4
47123078
HYDRAULIC VALVE
1шт.
5
84125295
VALVE SECTION,Electronic Control
3шт.
6
5191704
CHECK VALVE
1шт.
7
87381964
QUICK MALE COUPLING
1шт.
8
87381963
QUICK MALE COUPLING
1шт.
9
87381958
QUICK MALE COUPLING
1шт.
10
87546170
CONTROL VALVE
1шт.
11
87730706
CONTROL VALVE
1шт.
11
87730706R
REMAN-HYD VALVE
1шт.
11
87730706C
CORE-VALVE HYD
Return Number
1шт.
12
47129475
HEX SOC SCREW,M6 x 50mm
6шт.
13
47129474
HEX SOC SCREW,M6 x 35mm
6шт.
14
5191705
O-RING,9.4mm D x 2.1mm Thk
1шт.
Выбрано товаров: 16
