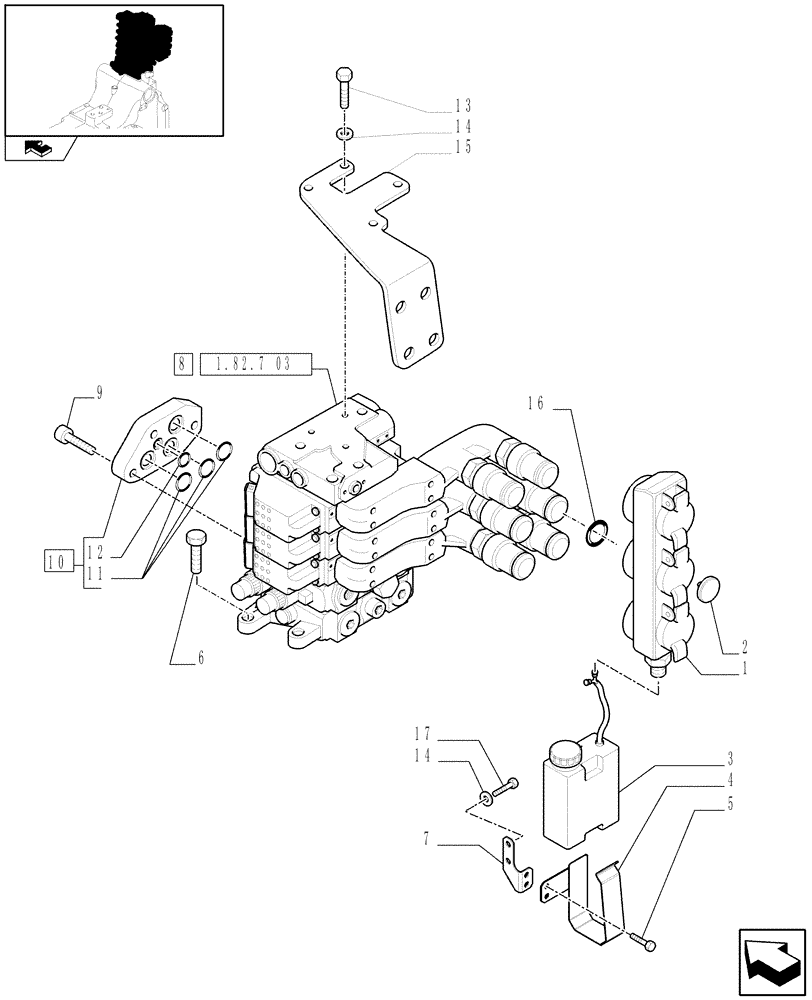

Запчасти Case IH MAXXUM 115 (1.82.7[01B]) - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6788 (07) - HYDRAULIC SYSTEM

1

84290177

DUST CAP

Incl. 2, 16, Serial Range: -C7117

2шт.

1

84338823

DUST CAP

Incl. 2, 16, Start Serial: D7117

2шт.

2

82029895

DISC,20mm D, Black

Black

6шт.

3

84284864

RESERVOIR, HYDRAULIC

, Serial Range: -C7117

1шт.

3

84287277

RESERVOIR, HYDRAULIC

, Start Serial: D7117

1шт.

4

84312030

SUPPORT

1шт.

5

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

6

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

7

84311423

SUPPORT

1шт.

8

84266154

CONTROL VALVE

ASSY

1шт.

9

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

10

5199101

COVER

1шт.

11

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

12

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

13

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

14

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

15

87499713

BRACKET

1шт.

16

14454580

O-RING,34.65mm ID x 1.78mm

3шт.

17

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
