Запчасти Case IH MAXXUM 115 (1.82.7[01A]) - 3 ELECTROHYDR. REAR REMOTE CONTROL VALVES (EHS1) - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6690 - C6788 (07) - HYDRAULIC SYSTEM

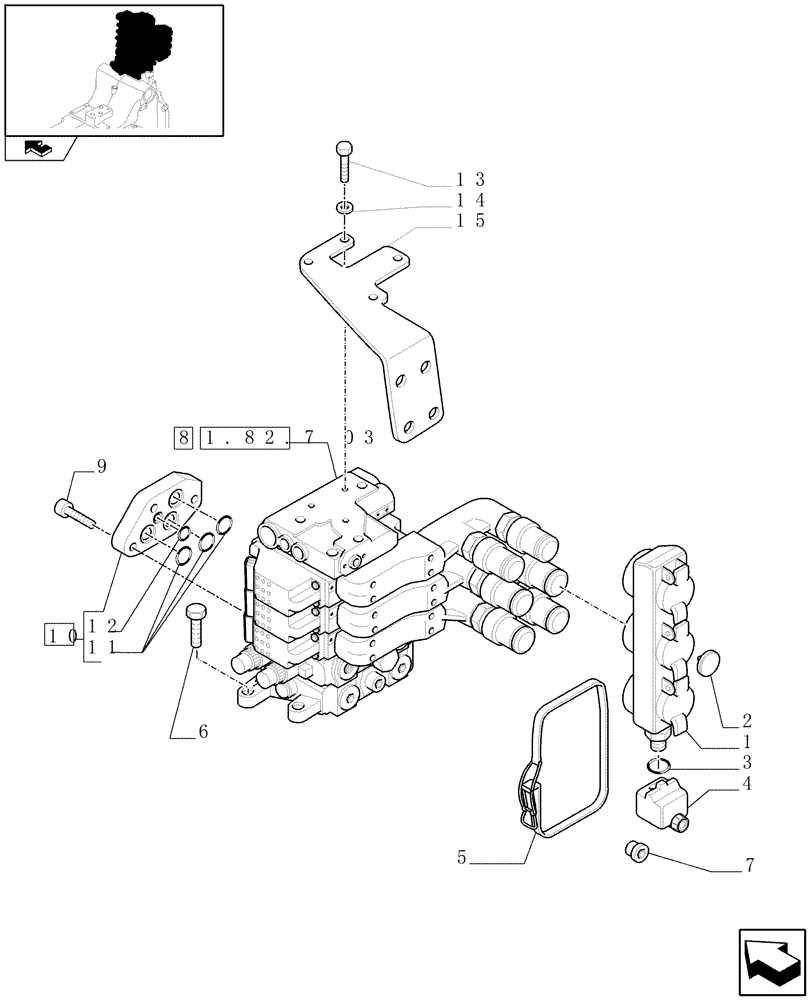

Схема запчастей Case IH MAXXUM 115 - (1.82.7[01A]) - 3 ELECTROHYDR. REAR REMOTE CONTROL VALVES (EHS1) - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6690 - C6788 (07) - HYDRAULIC SYSTEM
8
2
6
1
4
3
home
13
14
9
1.82.7 03
10
12
15
5
7
11

Артикул

Название

Примечание

Количество

1

87733576

DUST CAP

Incl. 2

2шт.

2

82029895

DISC,20mm D, Black

Black

6шт.

3

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

4

84161329

BOTTLE

4шт.

5

82031973

SPRING CLIP

1шт.

6

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

7

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

8

84266154

CONTROL VALVE

ASSY

1шт.

9

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

10

5199101

COVER

1шт.

11

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

12

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

13

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

14

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

15

87499713

BRACKET

1шт.

Выбрано товаров: 15
