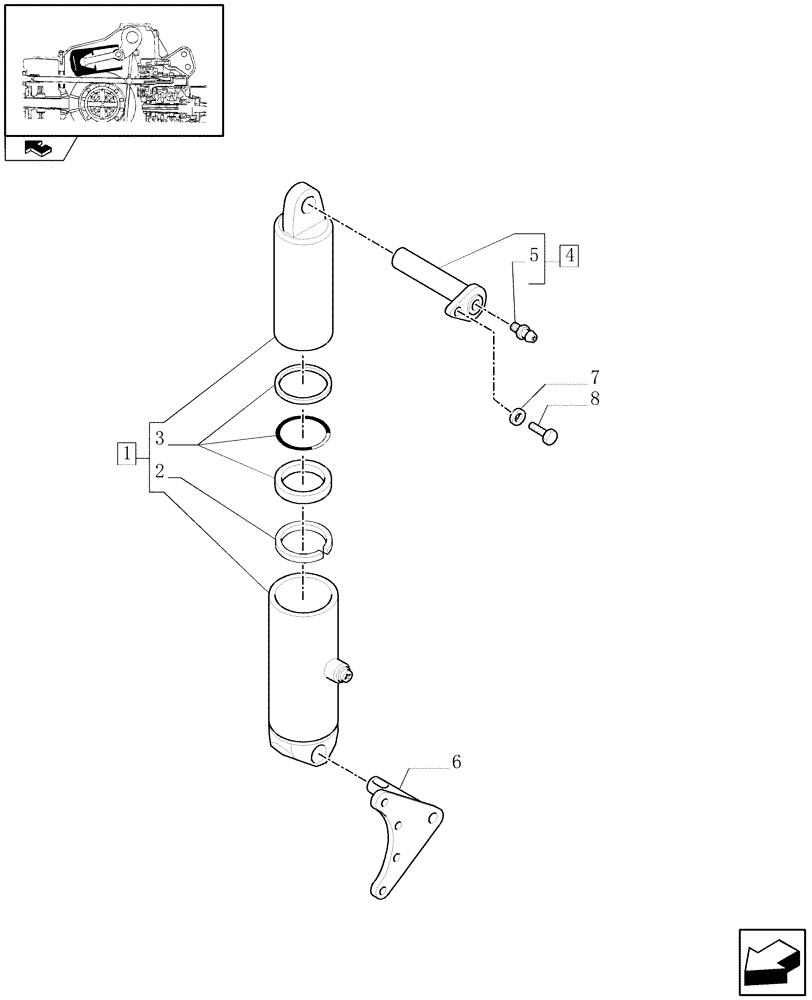

Запчасти Case IH MAXXUM 115 (1.82.6/01) - EDC WITH 2 EXTERNAL CYLINDERS (90MM) - CYLINDER AND PINS (VAR.330909-331909) (07) - HYDRAULIC SYSTEM

1

87306504

HYDRAULIC CYLINDER,90mm Rod, 177mm Stroke

1шт.

2

87309025

CIRCLIP

1шт.

3

47134493

SEAL KIT

1шт.

4

5190967

PIN,34.7mm OD x 96mm L

2шт.

5

87414

LUBE NIPPLE,1/4" - 28

1шт.

6

5191004

SUPPORT

LH

1шт.

6

5191006

SUPPORT

RH

1шт.

7

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

8

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.
