Запчасти Case IH MAXXUM 115 (1.82.1) - LIFTER LINES - LIFT CYLINDERS, LOAD SENSING AND DELIVERY PUMP PIPES (07) - HYDRAULIC SYSTEM

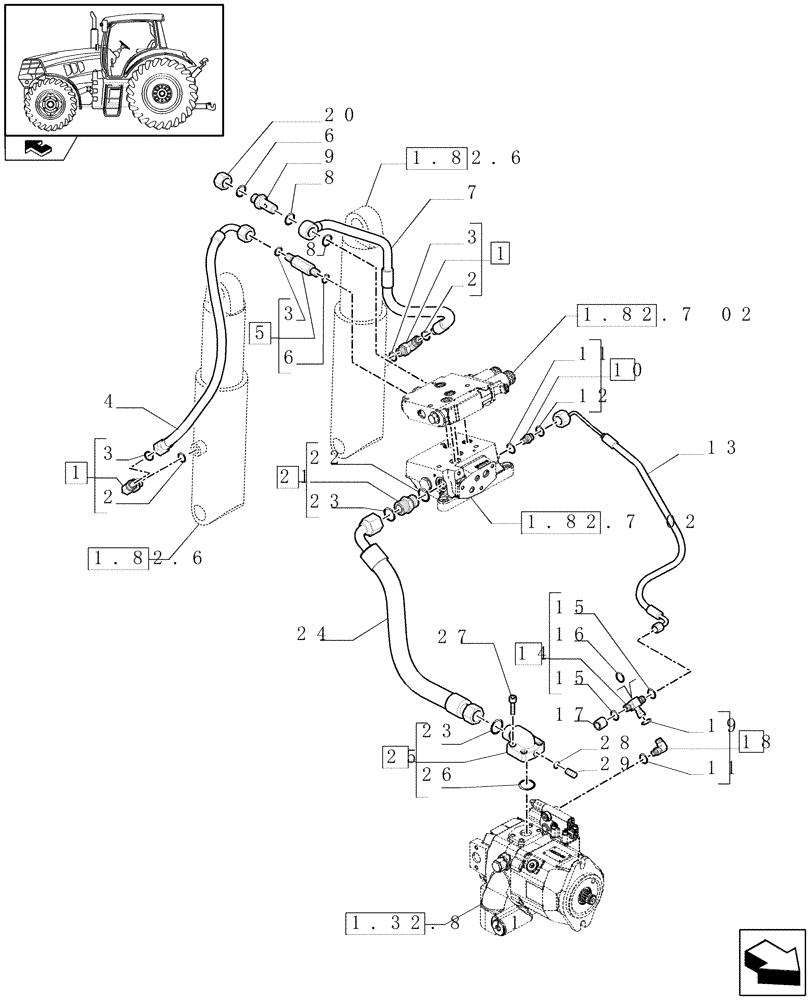

Схема запчастей Case IH MAXXUM 115 - (1.82.1) - LIFTER LINES - LIFT CYLINDERS, LOAD SENSING AND DELIVERY PUMP PIPES (07) - HYDRAULIC SYSTEM
11
4
1.82.7 02
1.82.7 02
1.32.8 01
home
2
1
8
6
19
28
15
29
13
7
22
9
21
25
3
3
3
26
1.82.6
1.82.6
8
23
5
10
14
18
16
20
2
17
23
11
27
15
1
24
12
6

Артикул

Название

Примечание

Количество

1

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

13/16 -16, M18x1.5

2шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

3

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

3шт.

4

47133647

HOSE,13/16"-16 ID x 600mm L

RH, 13/16-16

1шт.

5

87519164

HYD CONNECTOR

13/16 -16, M22 x 1.5

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

7

47133648

HOSE,10mm ID x 425mm L

LH, 13/16-16

1шт.

8

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

2шт.

9

47133105

BANJO BOLT,M22 x 1.50 x 58mm, R50

M22 x 1.5

1шт.

10

5185045

HYD CONNECTOR

9/16 -18, M12x1.5

1шт.

11

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

2шт.

12

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

13

47135605

FLEXIBLE HOSE

9/16 -18

1шт.

14

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

15

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

90 Duro, .301" ID x .070" Thk

2шт.

16

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

17

5189973

PLUG

9/16 -18

1шт.

18

47135296

90 ELBOW,9/16"-18 x 7/16"-20

9/16 -18, 7/16 -20

1шт.

19

5185507

O-RING,8.92mm ID x 1.83mm Width

M8.92 ID x 1.83 Thk

1шт.

19

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

20

47133106

PLUG,Hex, M22 x 1.5 x 13mm L

M22 x 1.5

1шт.

21

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

1-3/16"-12, M27 x 2

1шт.

22

14438185

O-RING,24mm ID x 3mm

1шт.

23

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

24

87312959

FLEXIBLE HOSE,16mm ID x 540mm L, SAE 100R16

560MM

1шт.

25

47130523

FLANGE

1шт.

26

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

1шт.

27

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

28

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

29

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

Выбрано товаров: 30
