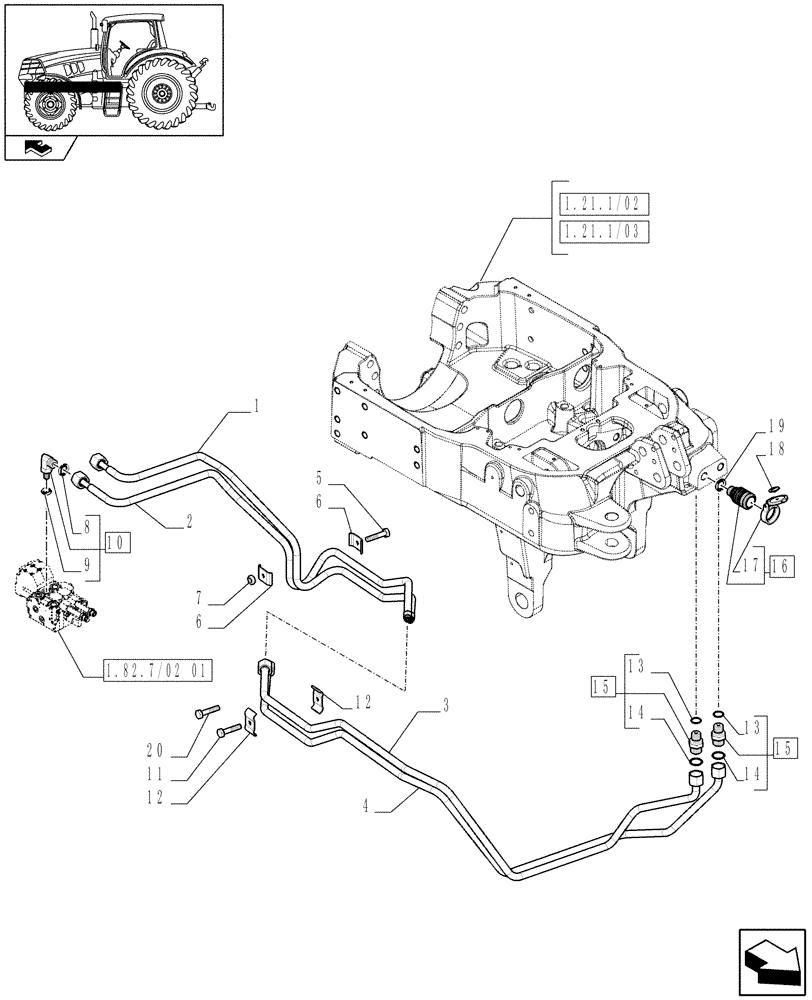

Запчасти Case IH MAXXUM 115 (1.81.9/03) - 2 FRONT COUPLERS FOR INTEGRATED FRONT HPL FROM MID MOUNT VALVES - PIPES (VAR.332814) (07) - HYDRAULIC SYSTEM

1

84177645

HYD TUBE

Auxillary Coupler

1шт.

2

84177646

HYD TUBE

Auxillary Coupler

1шт.

3

84177644

HYD TUBE

1 Aux. A Couplers LH

1шт.

4

84177643

HYD TUBE

1 Aux. B Couplers LH

1шт.

5

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

6

47057074

CLAMP,48.6mm x 30mm

2шт.

7

9706690

NUT,M8 x 1.25, Cl 8

2шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

9

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

10

82031421

90 ELBOW,13/16"-16 ORFS x M18 x 1.5 ORB

Contains Ref. 8,9

1шт.

11

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

12

84177648

CLAMP BRACKET

3шт.

13

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

14

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

4шт.

15

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Contains Ref. 13,14

2шт.

16

87301571

QUICK MALE COUPLING,M22 x 1.5

Contains Ref. 17

2шт.

17

47056253

CAP,59.5mm L x 46mm D x 19.4mm Thk, Black

2шт.

18

87731144

DISC,20mm D

1шт.

18

87731145

DISC,20mm D

1шт.

19

11270860

SEAL,22.2mm ID x 26.9mm OD x 1.5mm Thk

2шт.

20

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.
