Запчасти Case IH MAXXUM 115 (1.80.7/03[01]) - POWER TAKE-OFF 540/750/1000 RPM WITH REVERSABLE SHAFT - CLUTCH PLATES, GEARS AND SHAFT (VAR.332801) (07) - HYDRAULIC SYSTEM

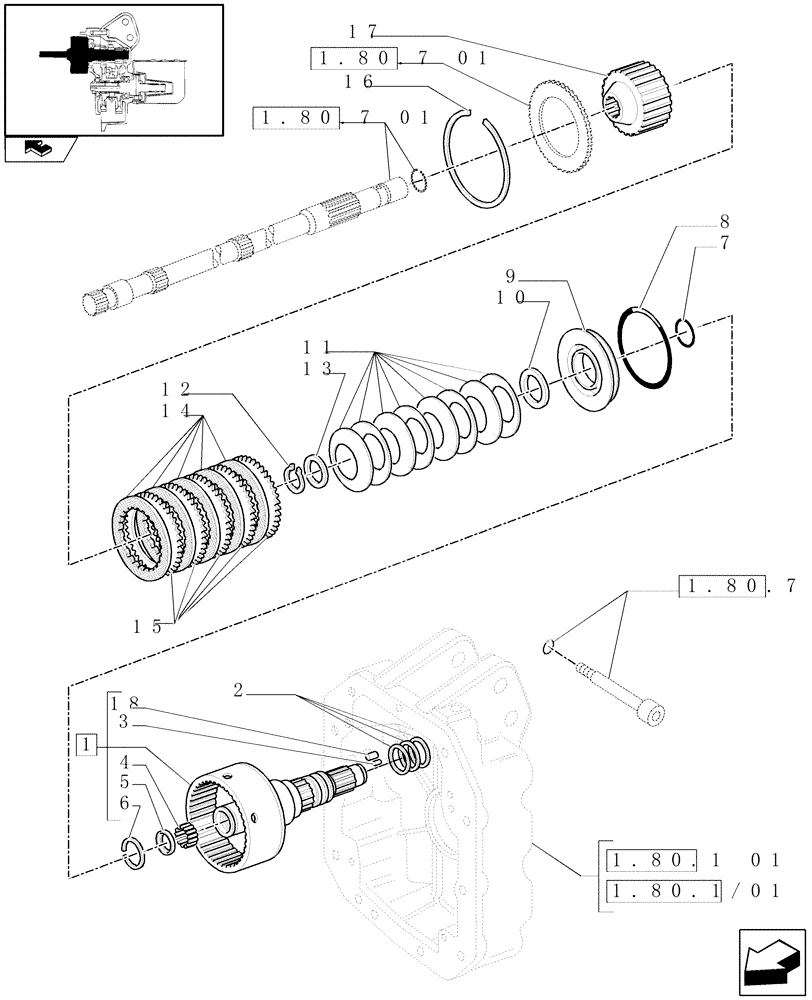

Схема запчастей Case IH MAXXUM 115 - (1.80.7/03[01]) - POWER TAKE-OFF 540/750/1000 RPM WITH REVERSABLE SHAFT - CLUTCH PLATES, GEARS AND SHAFT (VAR.332801) (07) - HYDRAULIC SYSTEM
15
12
1
11
16
13
3
5
6
8
7
9
home
1.80.7 01
1.80.7 01
1.80.7 01
1.80.1/01 01
1.80.1 01
18
2
10
4
17
14

Артикул

Название

Примечание

Количество

1

87305537

MAIN SHAFT

540/750/1000 RPM

1шт.

2

5175983

SEALING RING,46mm ID

SEALRING

3шт.

3

14536490

PLUG,8.00mm Dia x 15.70mm L

D=8

1шт.

4

5138952

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 26mm W

1шт.

5

5182702

GASKET,25mm ID x 33mm OD x 4mm Thk

1шт.

6

5182717

SNAP RING,1.5mm Thk

1шт.

7

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

8

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

1шт.

9

5198547

PISTON

1шт.

10

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

11

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

8шт.

12

5191305

CIRCLIP,54mm ID

1шт.

13

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

14

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

Square Pattern

6шт.

15

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

CLUTCH DISK 2.2MM

6шт.

16

5162251

CIRCLIP,142.5mm ID

1шт.

17

5198672

HUB,Z32

1шт.

18

82009120

PLUG

D=10

1шт.

Выбрано товаров: 18
