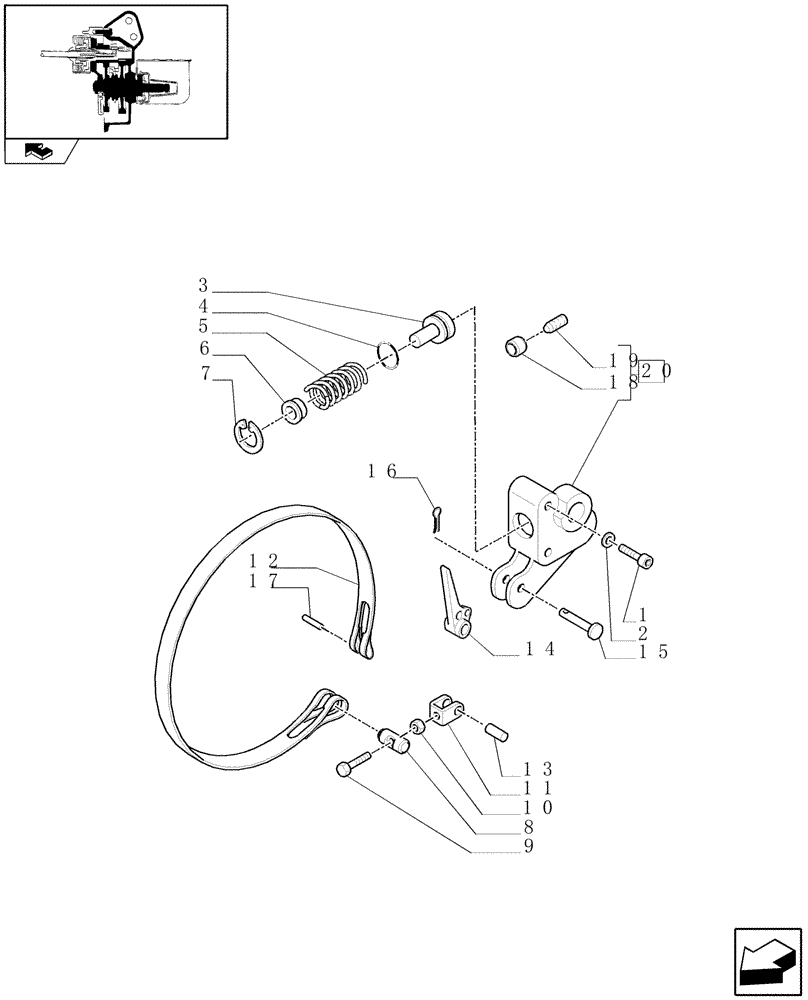

Запчасти Case IH MAXXUM 115 (1.80.7/02[02]) - POWER TAKE-OFF 540/750/1000 RPM - SUPPORT AND BRAKE BAND (VAR.330801) (07) - HYDRAULIC SYSTEM

1

14308924

HEX SOC SCREW,M8 x 1.25 x 60mm, Cl 8.8

2шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

3

83999379

PISTON

1шт.

4

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

5

81866141

SPRING,Compression, 0.66"OD x 1.35" L

1шт.

6

47133069

GUIDE

1шт.

7

81871263

SNAP RING,3/4", Int

1шт.

8

87518195

PIN,11.05mm OD x 23mm L

1шт.

9

87016469

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

10

13831801

FLANGE NUT,Flanged, M5, 0.80 Pitch, 4.30mm High

1шт.

11

87518169

BRACKET

1шт.

12

87391136

BRAKE BAND,23mm W x 1.0mm Thk

1шт.

13

10337610

DOWEL,M8 x 22

1шт.

14

87528159

LEVER

1шт.

15

84154647

PIN,6.2mm OD x 42.4mm L

1шт.

16

81454228

COTTER PIN,1/16" x .50" L

1шт.

17

10335010

DOWEL,M5 x 22

1шт.

18

5168157

BUSHING,8.5mm ID x 10.7mm OD x 5.5mm L

2шт.

19

13790921

SET SCREW,Hex Skt, M6 x 6mm, Cl 8.8, Full Thd, Flat Pt

M6 x 6

2шт.

20

87518133

HOUSING

1шт.
