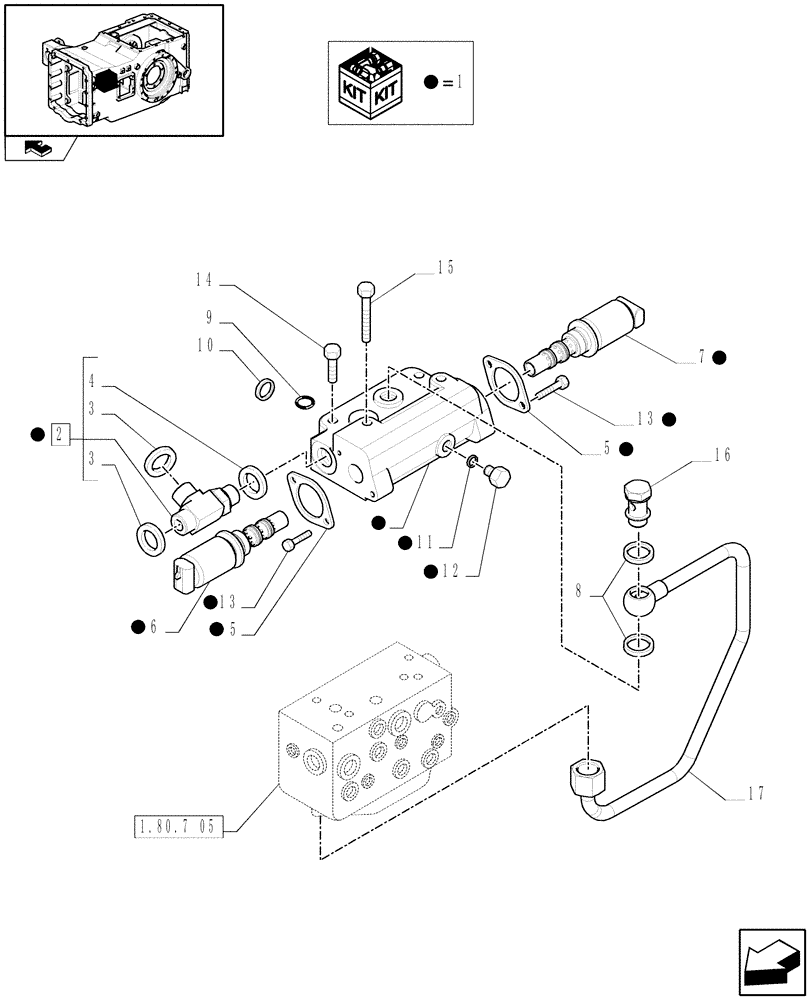

Запчасти Case IH MAXXUM 115 (1.80.7[06]) - PTO CLUTCH FOR 40E AND 50 KM/H TRANSMISSION LESS CREEPER - CONTROL VALVE AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

1

5197160

CONTROL VALVE

1шт.

2

5194083

TEE

M18 x 1.5, 13/16-16UN 2A

1шт.

3

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

2шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

5

5194826

BRACKET

2шт.

6

5196873

SOLENOID VALVE

132MM

1шт.

17 Speed, 50Km/H Clutch

1шт.

7

87723774

SOLENOID VALVE

114MM, Serial Range: -C6743

1шт.

17 Speed, 50Km/H Dump Clutch

1шт.

7

84276869

SOLENOID

, Start Serial: D6743

1шт.

17 Speed, 50Km/H Dump Clutch

1шт.

8

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

2шт.

9

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

1шт.

10

20063390

BALL,8.73mm OD

11/13

3шт.

11

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

10 x 14 x 1

1шт.

12

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

13

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

4шт.

14

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

15

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

16

10184417

BANJO BOLT,M16 x 1.5 x 31mm

1шт.

17

47125486

HYD TUBE

13/16-16

1шт.
