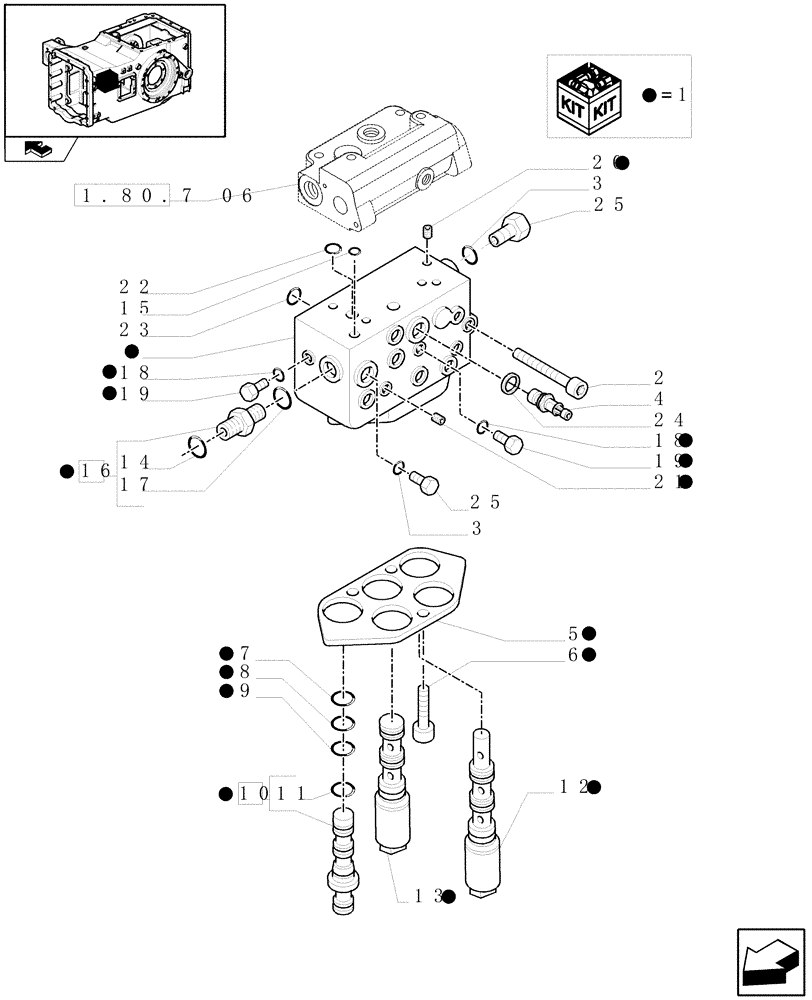

Запчасти Case IH MAXXUM 115 (1.80.7[05]) - PTO CLUTCH FOR 40E AND 50 KM/H TRANSMISSION LESS CREEPER - CONTROL VALVE AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

1

5197153

CONTROL VALVE

1шт.

2

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

M10 x 1.25 x 90

3шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER 12 x 18

2шт.

4

87384750

PRESSURE SWITCH

1шт.

4WD Disengagement, Steering System Pressure & Differential-Wet Lock

1шт.

5

5195317

PLATE

1шт.

6

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

7

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

8

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

9

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

10

87739558

SOLENOID VALVE,14W

Green Connectors

1шт.

10

87739558R

REMAN-SOLENOID

Green Connectors

1шт.

10

87739558C

CORE-SOLENOID

Return Number

1шт.

11

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

12

87723774

SOLENOID VALVE

114MM, Serial Range: -C6743

3шт.

Differential Lock, 4WD Disengagement & PTO Brake Engagement

1шт.

12

84276869

SOLENOID

, Start Serial: D6743

3шт.

Differential Lock, 4WD Disengagement & PTO Brake Engagement

1шт.

13

5196873

SOLENOID VALVE

132MM

1шт.

PTO Clutch Disengagement

1шт.

14

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

15

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

16

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

M16 x 1.5, 11/16-16UNF-2A

1шт.

17

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

18

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

5шт.

19

11903011

PLUG,M10 x 1 x 11, Cl5.8

5шт.

20

5171508

RESTRICTOR

1шт.

21

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

9шт.

22

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

23

14457081

O-RING,12.37mm ID x 2.62mm

6шт.

24

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

M12

1шт.

25

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

2шт.
