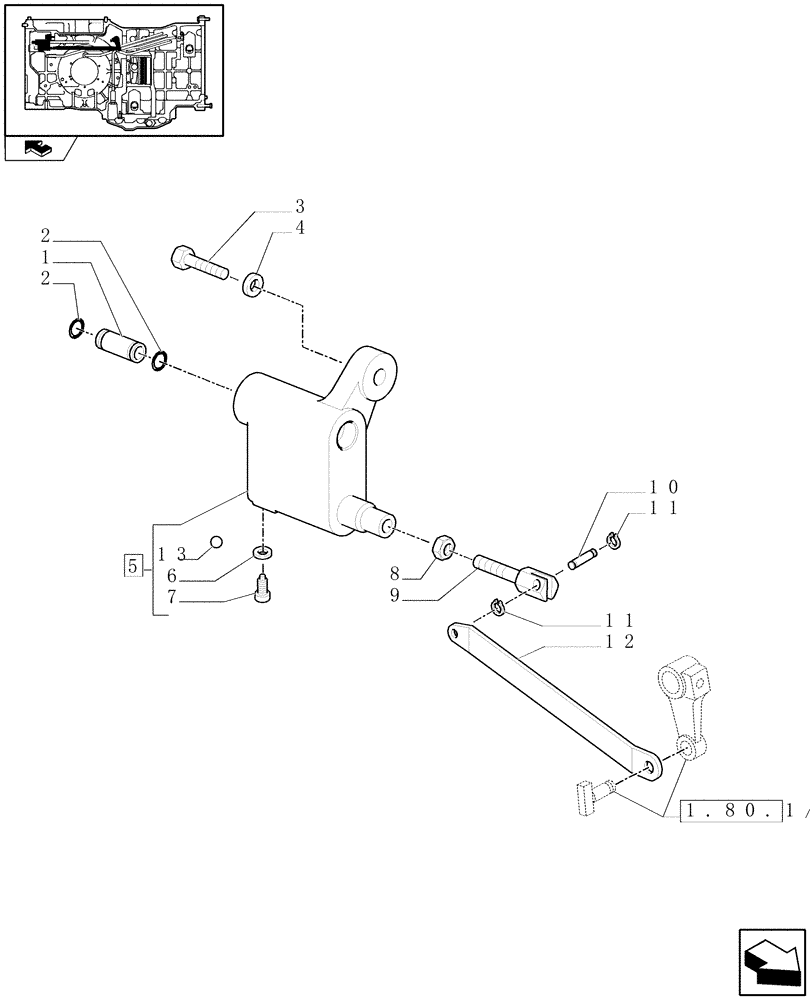

Запчасти Case IH MAXXUM 115 (1.80.1/04[03]) - GROUND SPEED PTO FOR SPS TRANSMISSION - SUPPORT ASSEMBLY WITH VALVE (VAR.332802) (07) - HYDRAULIC SYSTEM

1

5192536

HYD CONNECTOR

1шт.

2

14453181

O-RING,0.489" ID x 0.07" Width

2шт.

3

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

1шт.

4

11197979

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

1шт.

5

47127450

SUPPORT

ASSY

1шт.

6

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

7

5166386

SET SCREW,M6 x 1 x 11.5mm, Cl 8.8

1шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

9

47127789

CLEVIS

1шт.

10

5192675

PIN

1шт.

11

11063876

SPRING CLIP,M5 x 4mm

2шт.

12

47127558

LEVER

1шт.

13

20063470

BALL,7.9mm OD

2шт.
