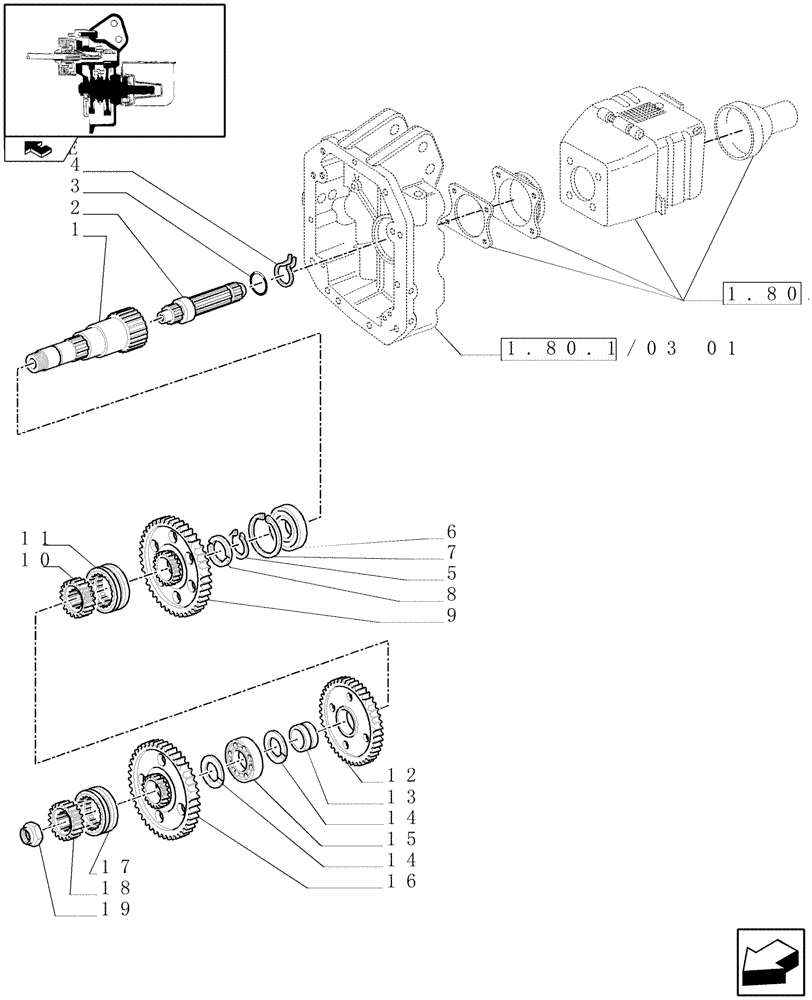

Запчасти Case IH MAXXUM 115 (1.80.1/03[02]) - POWER TAKE-OFF 540/750/1000 RPM - GUARD, GEARS AND SHAFT (VAR.330801-332801) (07) - HYDRAULIC SYSTEM

1

47131255

DRIVE SHAFT,21T, 12T, 20T, 12T

540/750/1000 RPM

1шт.

2

47130743

PTO SHAFT,6T Splines, 182mm L

540 RPM

1шт.

3

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

2.62 x 56.82

1шт.

4

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

5

11070076

SNAP RING,M65, Ext

1шт.

5

5143130

SNAP RING,M60, Ext x 4mm

1шт.

6

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

65 x 120 x 23

1шт.

7

11075976

SNAP RING,M120, Int

1шт.

8

47131733

RING,65mm ID x 88mm OD x 6.7mm Thk

1шт.

9

87578122

GEAR,Z62

1шт.

10

87578128

GEAR,21T Internal / 33T External

1шт.

11

87578126

SLEEVE,Z12

1шт.

12

87578123

GEAR,Z63

750 RPM

1шт.

13

5192401

BUSHING,40mm ID x 48mm OD x 32mm L

1шт.

14

5192170

ANTI-WRAP PLATE

2шт.

15

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23MM

1шт.

16

87578124

GEAR

1000 RPM

1шт.

17

87578126

SLEEVE,Z12

1шт.

18

87578127

SLEEVE,Z12

1шт.

19

5122985

NUT,Ring, M32, 1.5 Pitch

M32 x 1.5

1шт.
