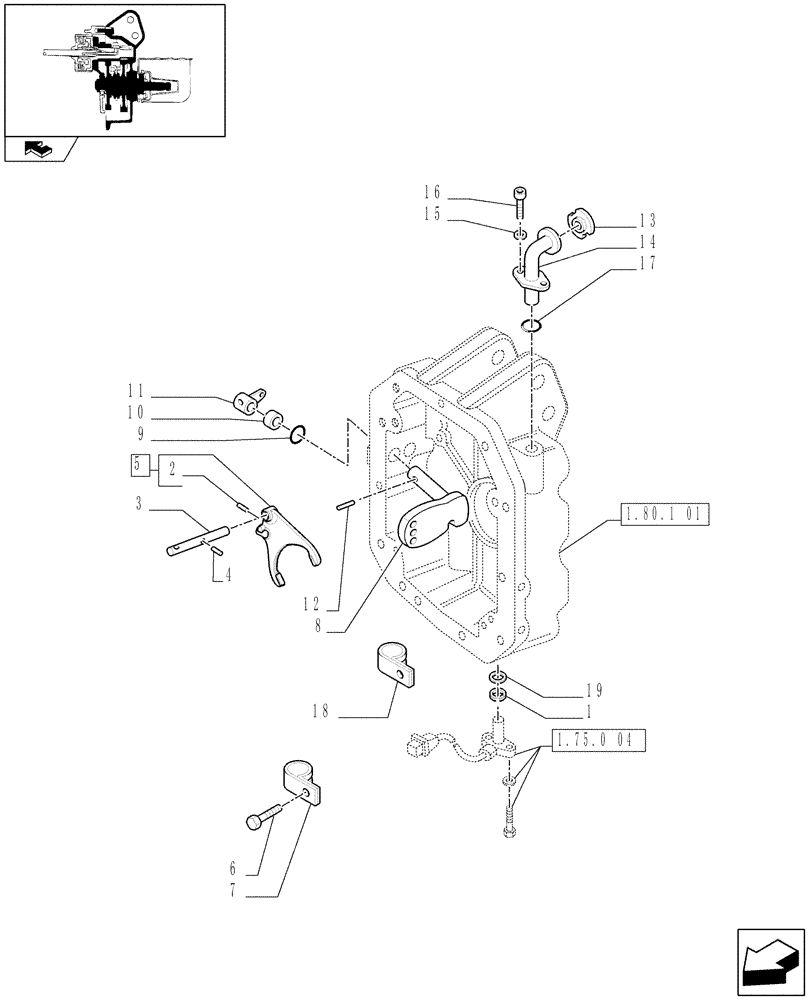

Запчасти Case IH MAXXUM 115 (1.80.1[03]) - POWER TAKE-OFF 540/1000 RPM - OIL FILLER PIPE AND ENGAGEMENT (07) - HYDRAULIC SYSTEM

1

47132789

SEAL,15.5mm ID x 19mm OD x 3mm Thk

1шт.

2

5154545

PIN,10mm OD x 25mm L

10 x 25

1шт.

3

5199220

ROD,16mm OD x 128mm L

1шт.

4

13910370

ROLL PIN,6mm OD x 30mm L

1шт.

5

87726010

CLUTCH FORK

1шт.

6

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

7

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

1шт.

8

5198128

PIN,20mm OD x 68mm L

1шт.

9

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

10

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

11

87578133

CONTROL LEVER

1шт.

12

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

13

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

14

5198124

TUBE

1шт.

15

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

16

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

17

14458281

O-RING,1.237" ID x 1.443" OD x 0.103"

1шт.

18

85700737

CLAMP,6.86mm ID, 14.99mm Bolt Hole, J Type

1шт.

19

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.
