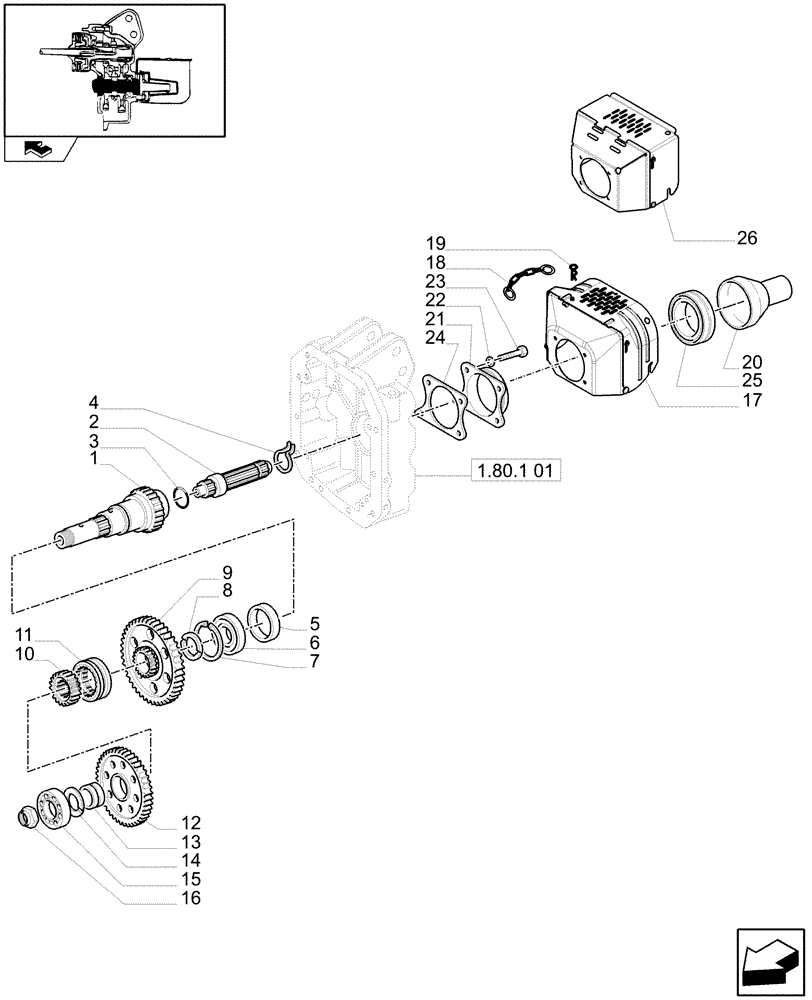

Запчасти Case IH MAXXUM 115 (1.80.1[02]) - POWER TAKE-OFF 540/1000 RPM - GUARD, GEARS AND SHAFT (07) - HYDRAULIC SYSTEM

1

47131254

DRIVE SHAFT,65T, 262mm L

540/1000 RPM

1шт.

2

47130743

PTO SHAFT,6T Splines, 182mm L

540 RPM, 6 TEETH

1шт.

2

47130744

PTO SHAFT,21T, 20T, 182mm L

1000 RPM

1шт.

Additional 21 Spline Stub Shaft for Rear PTO, VAR.330809

1шт.

3

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

4

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

5

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

80 x 100 x 10

1шт.

6

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

65 x 120 x 23

1шт.

7

11075976

SNAP RING,M120, Int

1шт.

8

5143130

SNAP RING,M60, Ext x 4mm

1шт.

8

47131733

RING,65mm ID x 88mm OD x 6.7mm Thk

1шт.

9

87578122

GEAR,Z62

540 RPM

1шт.

10

87578128

GEAR,21T Internal / 33T External

1шт.

11

87578126

SLEEVE,Z12

1шт.

12

87654259

GEAR

1000 RPM

1шт.

13

5192401

BUSHING,40mm ID x 48mm OD x 32mm L

1шт.

14

5192170

ANTI-WRAP PLATE

1шт.

15

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23MM

1шт.

16

5123114

RING NUT,Hex, M36 x 1.5

M36 x 1.5

1шт.

17

82024034

GUARD

Incl. 18, 19, Serial Range: -C7183

1шт.

18

82024033

CHAIN

, Serial Range: -C7183

1шт.

19

82026318

COTTER PIN,1/8 x 2 5/16

Spring Retainer, 1/8" x 2-5/16", Serial Range: -C7183

1шт.

20

47125899

COVER,109mm L

1шт.

21

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

22

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

23

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

24

47131825

GUARD

1шт.

25

47131063

SEAL,70mm ID x 95mm OD x 14mm Thk

1шт.

Waterproofing, VAR.330448-330449

1шт.

26

84568331

COVER

, Start Serial: D7183

1шт.
