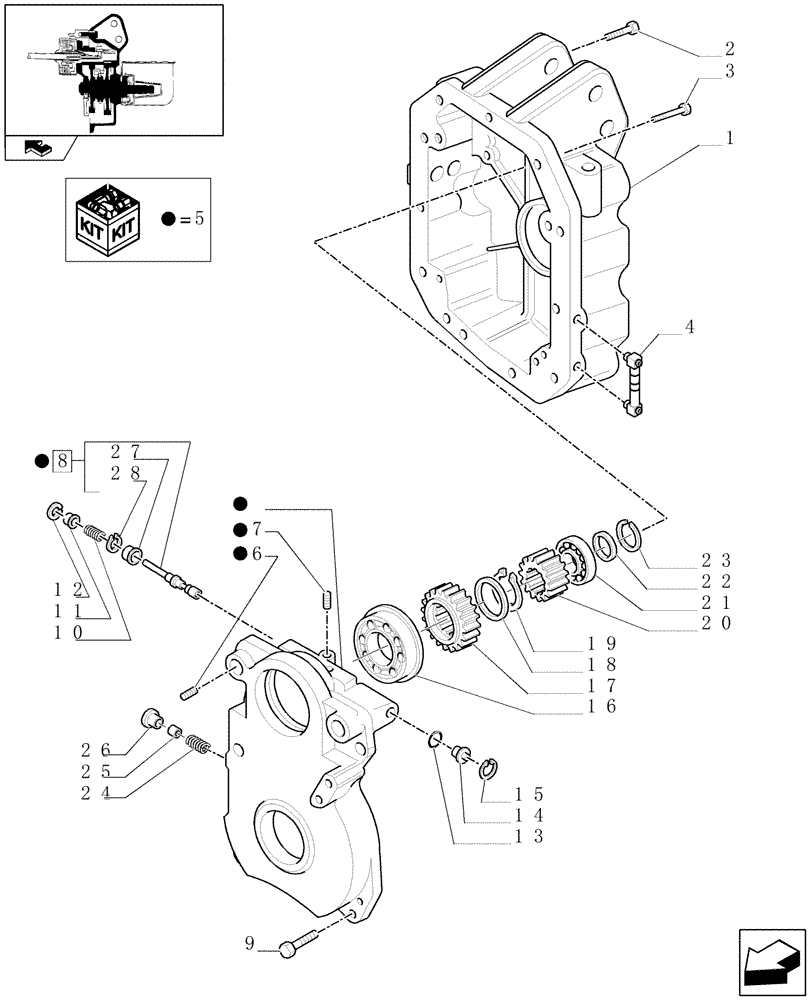

Запчасти Case IH MAXXUM 115 (1.80.1[01]) - POWER TAKE-OFF 540/1000 RPM - CASING, GEARS AND SUPPORT (07) - HYDRAULIC SYSTEM

1

47131252

HOUSING

1шт.

2

11254124

BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

4шт.

3

15981024

SCREW,Hex, M16 x 1.5 x 55mm, Cl 8.8

7шт.

4

87323126

INDICATOR

1шт.

5

87673377

COVER

1шт.

6

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

7

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

3шт.

8

47128616

VALVE

1шт.

9

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

10

47123788

SPRING,15mm OD x 87.5mm L

1шт.

11

47127951

CAP COVER

1шт.

12

13420576

SNAP RING,M16, Int

1шт.

13

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

14

47128597

PLUG,6mm ID x 19mm OD x 13mm L

1шт.

15

11057776

SNAP RING,M19, Int

1шт.

16

5182640

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

17

5193955

GEAR

1шт.

18

5192262

THRUST WASHER,50.10mm ID x 60.00mm OD x 2.00mm

1шт.

19

5138419

SNAP RING,M50

D=50

1шт.

20

5193952

GEAR,Z17

1шт.

21

5151460

ROLLER BEARING,35mm ID x 72mm OD x 17mm W

35 x 72 x 17

1шт.

22

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

23

5154307

SNAP RING,M35

D=35

1шт.

24

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

25

5193099

PAWL,8.5mm D x 22.5mm L

1шт.

26

5193100

PLUG,Hex, M14 x 1.5

1шт.

27

47128538

SPACER

1шт.

28

13397370

SNAP RING,M8, Int

1шт.
