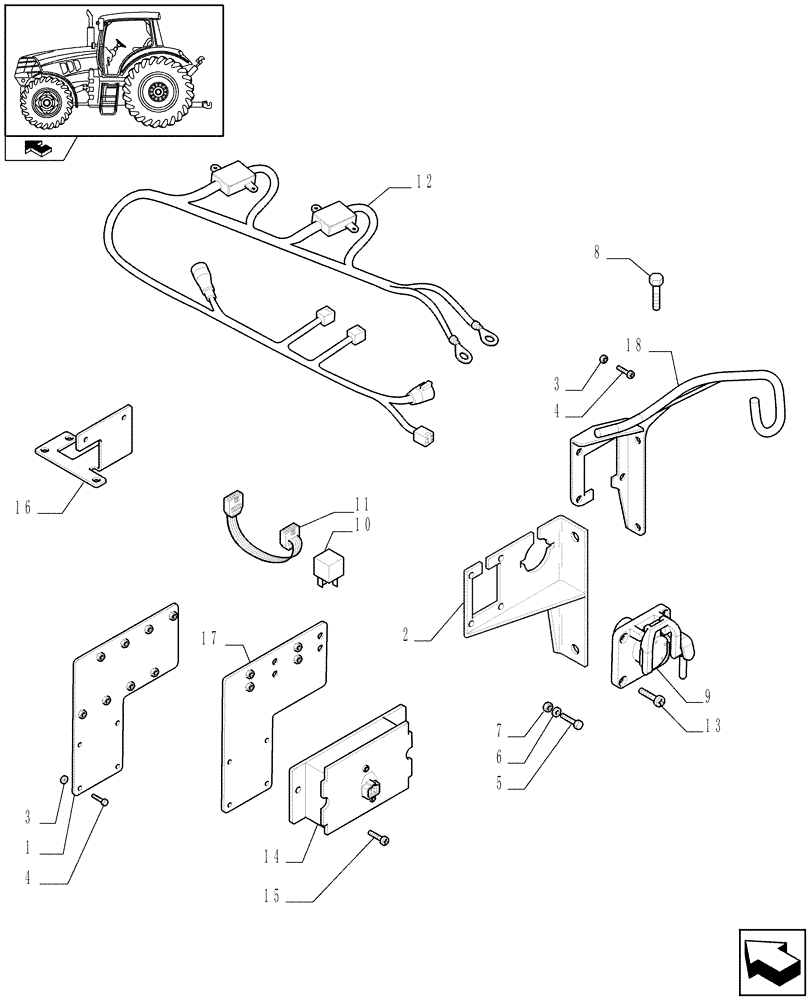

Запчасти Case IH MAXXUM 115 (1.76.0/03[02]) - PREDISPOSITION FOR ISOBUS VIRTUAL TERMINAL - ISO BUS MOUNTING (VAR.330079-334761) (06) - ELECTRICAL SYSTEMS

1

87594470

SUPPORT

, Serial Range: -C6725

2шт.

2

84167089

SUPPORT

, Serial Range: -C7019

1шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

4шт.

4

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

4шт.

4

86585707

SCREW,Phillips Drive, Pan HD, M4 x 35mm, Cl 4.8

4шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

6

10571579

LOCK WASHER,M6

4шт.

7

15896211

NUT,M6, Cl 8

4шт.

8

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

9

87522416

ELEC CONNECTOR,Female, 5 Cavities

Isobus Breakaway

1шт.

10

82017871

RELAY,12V, 20A

2шт.

11

87638191

WIRE HARNESS

Link Lead

1шт.

12

84122016

WIRE HARNESS

, Serial Range: -C6725

1шт.

12

84250780

WIRE HARNESS

, Start Serial: D6725

1шт.

13

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

4шт.

14

82038683

ELEC. TERMINAL PIN

ELEC CONNECTOR

1шт.

15

15645501

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 16mm

2шт.

16

87499716

SUPPORT

1шт.

Predisposition for ISOBUS Virtual Terminal Less Air Brakes, VAR.334761

1шт.

17

84268760

SUPPORT

, Start Serial: D6725

1шт.

18

84384570

SUPPORT

, Start Serial: D7019

1шт.
