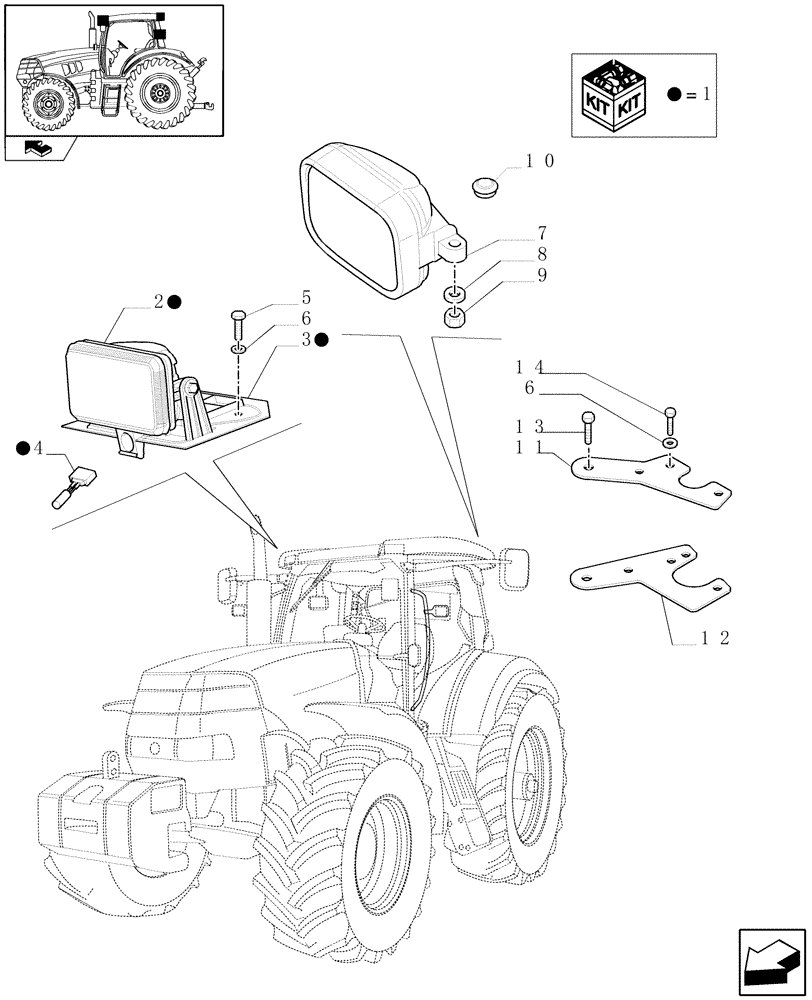

Запчасти Case IH MAXXUM 115 (1.75.7) - WORKLAMPS (06) - ELECTRICAL SYSTEMS

1

82031073

WORK LAMP,Halogen, 12V, 50W, Clear

RH HEADLAMP

1шт.

1

82031074

WORK LAMP

LH HEADLAMP

1шт.

2

82031078

LIGHT ASSY.

2шт.

3

82031076

SUPPORT

RH

1шт.

3

82031077

MOUNTING PLATE

LH

1шт.

4

44995162

BULB,T-3 1/4, 12.8V, 50W

2шт.

5

84193289

SCREW,Torx, Pan HD, M6 x 14mm, Cl 4.8

4шт.

6

14496407

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

12шт.

7

87313318

WORK LAMP,Halogen, 12V, 55W, Clear

RH

1шт.

7

87313317

WORK LAMP

LH

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

9

14048211

NUT,M8 x 1.25, Cl 8

2шт.

10

81865592

PLUG,PVC Dome Head

2шт.

11

87527093

BRACKET

Front

2шт.

St. Valentin Production Models only

1шт.

12

87527099

BRACKET

Rear

2шт.

St. Valentin Production Models only

1шт.

13

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

4шт.

St. Valentin Production Models only

1шт.

14

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

St. Valentin Production Models only

1шт.
