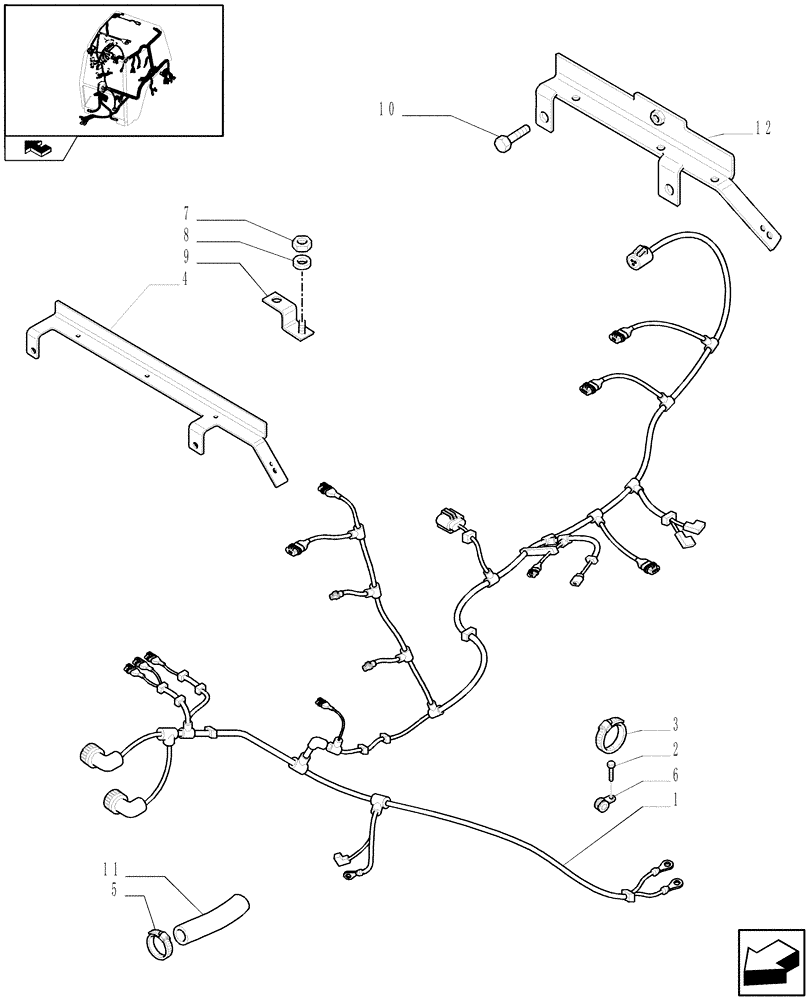

Запчасти Case IH MAXXUM 115 (1.75.4[02]) - FRONT MAIN CABLE (06) - ELECTRICAL SYSTEMS

1

84150926

WIRE HARNESS

Front Main, Serial Range: -C6737

1шт.

Basildon Production Models only

1шт.

Maxxum 110, Maxxum 120, Maxxum 130

1шт.

1

84150928

WIRE HARNESS

Front Main, Serial Range: -C6737

1шт.

Basildon Production Models only

1шт.

Maxxum 115, Maxxum 125, Maxxum 140

1шт.

1

84138261

WIRE HARNESS

Front Main

1шт.

St. Valentin Production Models only

1шт.

Maxxum 110, Maxxum 120, Maxxum 130

1шт.

1

84138263

WIRE HARNESS

Front Main

1шт.

St. Valentin Production Models only

1шт.

Maxxum 115, Maxxum 125, Maxxum 140

1шт.

1

84275837

WIRE HARNESS

Front Main, Start Serial: D6737

1шт.

Basildon Production Models only

1шт.

Maxxum 110, Maxxum 120, Maxxum 130

1шт.

1

84273202

WIRE HARNESS

Front Main, Start Serial: D6737

1шт.

Basildon Production Models only

1шт.

Maxxum 115, Maxxum 125, Maxxum 140

1шт.

2

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

2шт.

Basildon Production Models only

1шт.

2

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

3

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

4

87677801

BRACKET

1шт.

Maxxum 115, Maxxum 125, Maxxum 140

1шт.

5

83933061

STRAP

2шт.

Basildon Production Models only

1шт.

6

10441990

CLAMP,24mm, Coat, 7mm Bolt Hole, P Type

2шт.

St. Valentin Production Models only

1шт.

6

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

26MM dia.

1шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

9

87614194

BRACKET

1шт.

10

14301824

HEX SOC SCREW,M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

11

84178749

PROTECTIVE SLEEVE

L=400MM

1шт.

Basildon Production Models only

1шт.

12

87677802

BRACKET

1шт.

Maxxum 110, Maxxum 120, Maxxum 130

1шт.
