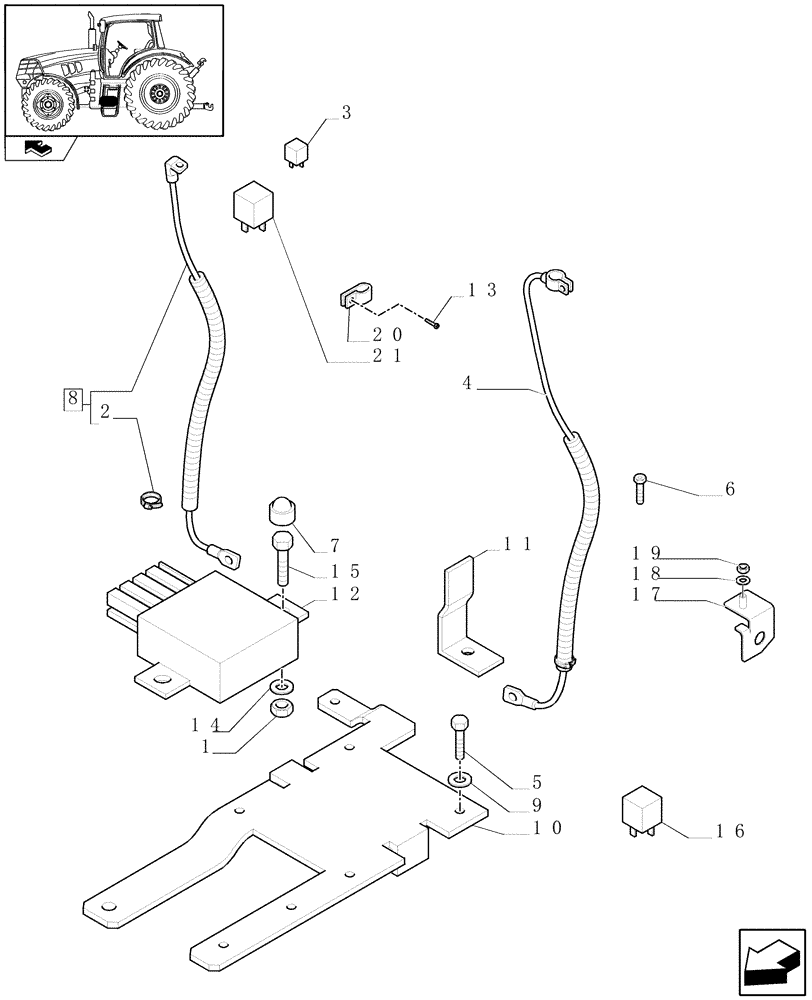

Запчасти Case IH MAXXUM 115 (1.75.3/01[01]) - ELECTRICALLY CONTROLLED BATTERY ISOLATOR (VAR.330798) (06) - ELECTRICAL SYSTEMS

1

86528579

NUT,M8 x 1.25

2шт.

2

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

1шт.

3

10395890

FUSE,5A, Mini, Beige

1шт.

4

87576880

ELECTRIC CABLE

1шт.

Battery to Isolator

1шт.

5

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

6шт.

6

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

7

87516431

CUP,for M8 Nut

4шт.

8

87305175

TERMINAL

, Serial Range: -C6725

1шт.

Starter to Isolator

1шт.

8

84249328

ELECTRIC CABLE

, Start Serial: D6725

4шт.

Starter to Isolator

1шт.

9

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

6шт.

10

87392817

BRACKET

1шт.

11

87392819

BRACKET

1шт.

12

87392809

RELAY,High Current, 12V, 190A

Battery Disconnect Switch

1шт.

13

13272117

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

14

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

15

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

16

87691156

RELAY

4 min delay

1шт.

17

87395437

BRACKET

1шт.

18

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

19

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

20

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

14MM

2шт.

20

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

21MM

1шт.

21

82023238

RELAY,12V, 20A

2шт.
