Запчасти Case IH MAXXUM 115 (1.75.1/06) - SWITCH AND RELATED PARTS - EXTERNAL MIRRORS, WORK LIGHTS AND BATTERY ISOLATOR (06) - ELECTRICAL SYSTEMS

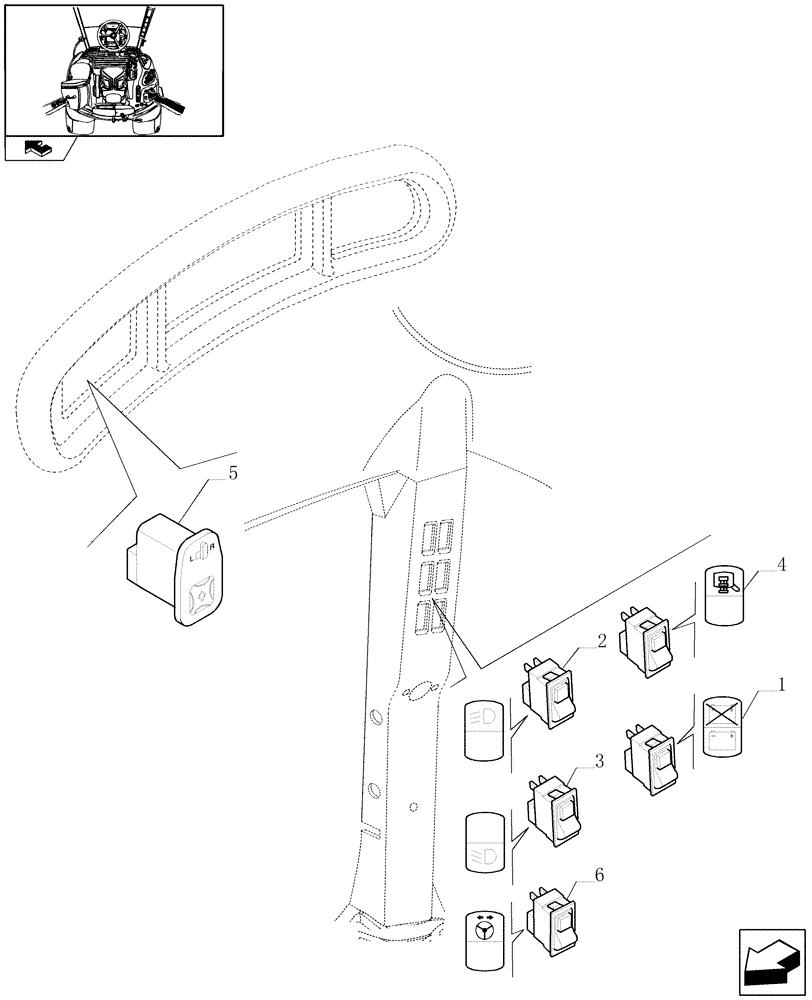

Схема запчастей Case IH MAXXUM 115 - (1.75.1/06) - SWITCH AND RELATED PARTS - EXTERNAL MIRRORS, WORK LIGHTS AND BATTERY ISOLATOR (06) - ELECTRICAL SYSTEMS
3
6
home
2
5
1
4

Артикул

Название

Примечание

Количество

1

87392866

SWITCH ASSY

1шт.

Electronic Battery Isolator, VAR.330798

1шт.

2

84203484

SWITCH ASSY

Front Lamps

1шт.

Auxliary Worklights, VAR.350784-331785, St. Valentin Production only

1шт.

3

84203483

SWITCH ASSY

Rear Lamps

4шт.

Auxliary Worklights, VAR.350784-331785, St. Valentin Production only

1шт.

4

87573650

SWITCH ASSY

Mirrors

1шт.

Two Telescopic, Heated and with Remote Adjustment Rear-View Mirrors, VAR.330827-331827

1шт.

5

82037339

SWITCH ASSY

Mirrors

1шт.

Two Telescopic, Heated and with Remote Adjustment Rear-View Mirrors, VAR.330827-331827

1шт.

6

87694321

SWITCH ASSY

1шт.

Faststeer, VAR.330631-336631, St. Valentin Production only

1шт.

Выбрано товаров: 12
