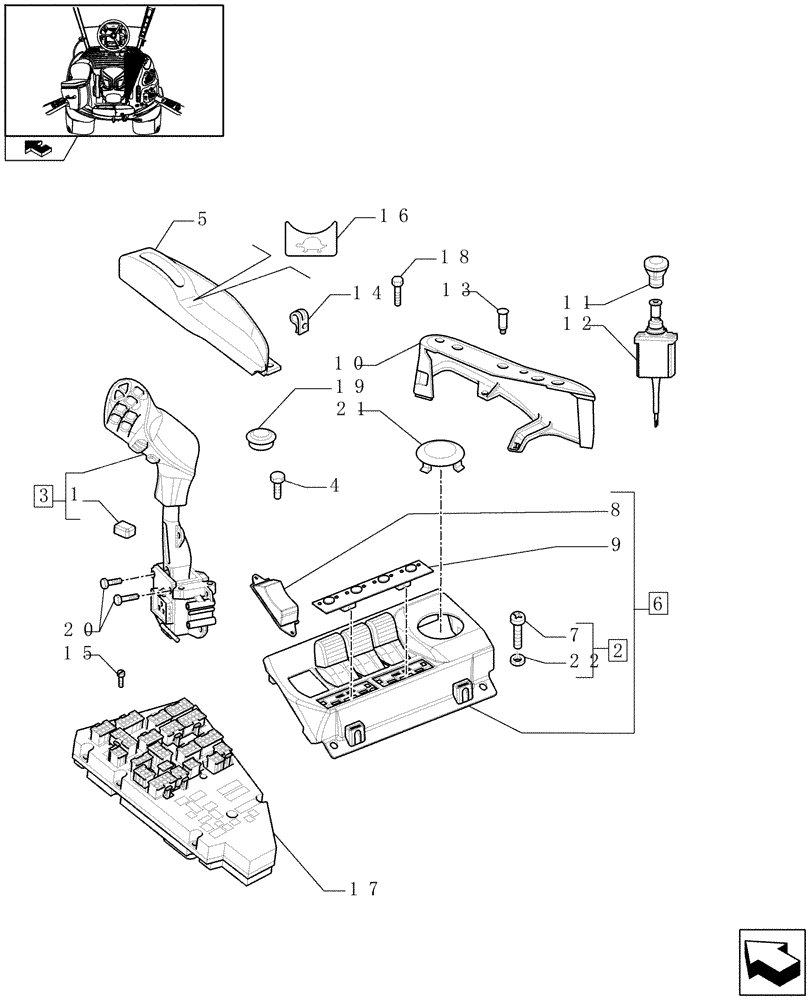

Запчасти Case IH MAXXUM 115 (1.75.1[01]) - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT (06) - ELECTRICAL SYSTEMS

1

84238354

CAP

1шт.

2

84228894

KIT

1шт.

3

84209526

LEVER

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

11шт.

5

84122981

BEZEL

1шт.

6

84202317

TOGGLE SWITCH

1шт.

6

84202321

TOGGLE SWITCH

1шт.

4 Electrohydraulic Rear Remote Control Valves, VAR.330862-338851

1шт.

7

50631

SCREW,Self Tapping, M6 x 0.5" OAL

12шт.

8

84226110

PLUG,32.5mm W x 92mm L

1шт.

Std Equipment

1шт.

9

87613728

PANEL

2шт.

10

84216544

HOUSING

1шт.

11

87638633

KNOB

Yellow

2шт.

Q.ty=1 for Std equipment; Q.ty=2 for Integrated Front HPL with PTO (6 spline), VAR.333648-334648-335648

1шт.

12

84218194

SWITCH ASSY

2шт.

Q.ty=1 for Std equipment; Q.ty=2 for Integrated Front HPL with PTO (6 spline), VAR.333648-334648-335648

1шт.

13

47056319

WARNING LIGHT

Yellow

2шт.

Q.ty=1 for Std equipment; Q.ty=2 for Integrated Front HPL with PTO (6 spline), VAR.333648-334648-335648

1шт.

14

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

NUT 4.8 x 14.6 x 7

14шт.

15

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

5шт.

16

84145169

DECAL

1шт.

17

84209240

MODULE

Armrest Control Module, Serial Range: -C6918

1шт.

17

47443335R

REMAN ELECT CONTROL

MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, All TRACTOR - GARU - TIER 3, Armrest Control Module, Serial Range: -C6918 (11/09-)

1шт.

17

47443335C

CORE-ELECTRONIC CONT

Return Number

1шт.

17

84356314

MODULE

Armrest Control Module, Start Serial: D6918

1шт.

17

47443335R

REMAN ELECT CONTROL

MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, All TRACTOR - GARU - TIER 3, Armrest Control Module, Start Serial: D6918 (11/09-)

1шт.

17

47443335C

CORE-ELECTRONIC CONT

Return Number

1шт.

18

10589928

SCREW,Flat Hd, M6 x 20.2mm OAL 10mm Collar

M6 x 22

4шт.

19

81862738

PLUG,M38 x 28 x 5mm

28MM

6шт.

20

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

M6 x 25

4шт.

21

87725444

BLANK-OFF PLUG,57.5mm OD, Black

1шт.

Less Joystick

1шт.

22

495-81251

WASHER,0.16" ID x 0.31" OD x 0.04" Thk

12шт.
