Запчасти Case IH MAXXUM 115 (1.42.0[03]) - POWER STEERING DELIVERY AND RETURN PIPES FOR STANDARD STEER (04) - FRONT AXLE & STEERING

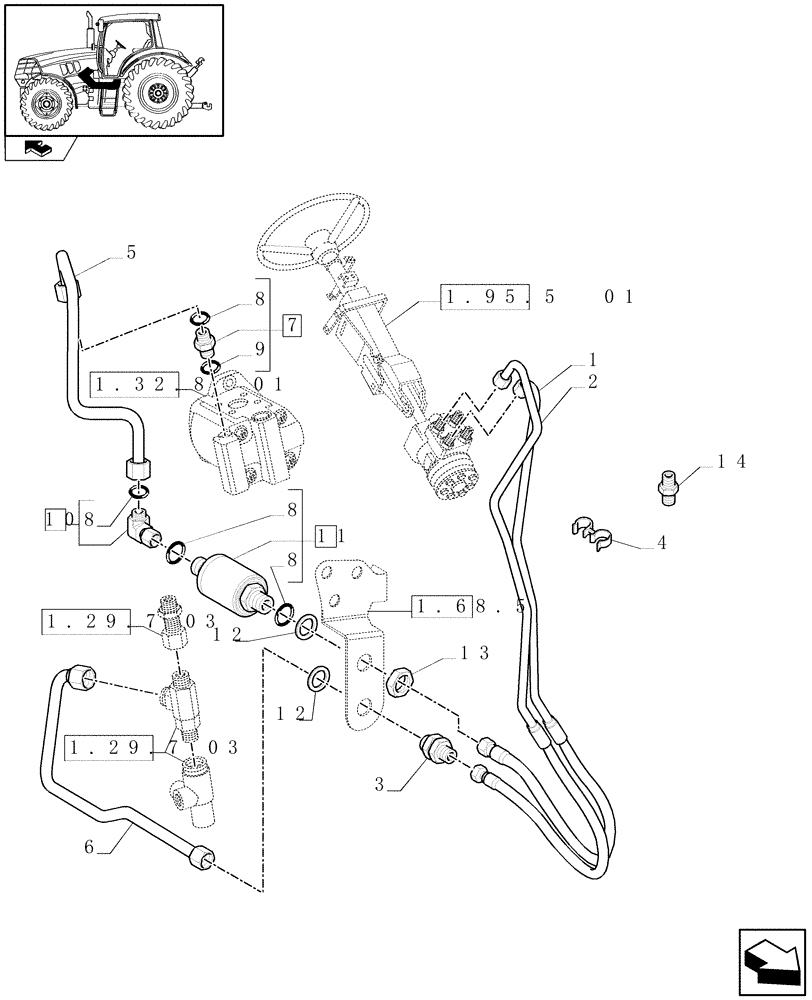

Схема запчастей Case IH MAXXUM 115 - (1.42.0[03]) - POWER STEERING DELIVERY AND RETURN PIPES FOR STANDARD STEER (04) - FRONT AXLE & STEERING
8
3
8
2
12
home
1.68.5
1.29.7 03
1.29.7 03
14
10
11
1.95.5 01
9
8
7
12
6
4
1.32.8 01
13
5
8
1

Артикул

Название

Примечание

Количество

1

84181998

HYD TUBE,16 mm OD

Power Steering Return, Serial Range: -C6870

1шт.

1

84295841

HYD TUBE

Power Steering Return, Start Serial: D6870

1шт.

1

84182516

HYD TUBE,16 mm OD

Power Steering Return, Serial Range: -C6870

1шт.

Cab Suspension and Cab Hoses for Standard Steer, VAR.330658

1шт.

1

84295843

HYD TUBE

Power Steering Return, Start Serial: D6870

1шт.

Cab Suspension and Cab Hoses for Standard Steer, VAR.330658

1шт.

2

84181995

HYD TUBE,16 mm OD

Power Steering Feed, Serial Range: -C6870

1шт.

2

84295842

HYD TUBE

Power Steering Feed, Start Serial: D6870

1шт.

2

84182518

HYD TUBE,16 mm OD

Power Steering Feed, Serial Range: -C6870

1шт.

Cab Suspension and Cab Hoses for Standard Steer, VAR.330658

1шт.

2

84295844

HYD TUBE

Power Steering Feed, Start Serial: D6870

1шт.

Cab Suspension and Cab Hoses for Standard Steer, VAR.330658

1шт.

3

84169871

HYD CONNECTOR

1шт.

4

82035888

CLIP,16mm

1шт.

5

84168462

PIPE

To Steering Motor

1шт.

6

84168465

TUBE,16 mm OD

From Steering Motor

1шт.

7

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

1шт.

11

84169702

FILTER

DEF FILTER

1шт.

12

84169872

SPACER

2шт.

13

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

14

82030315

HYD CONNECTOR

1шт.

Выбрано товаров: 24
