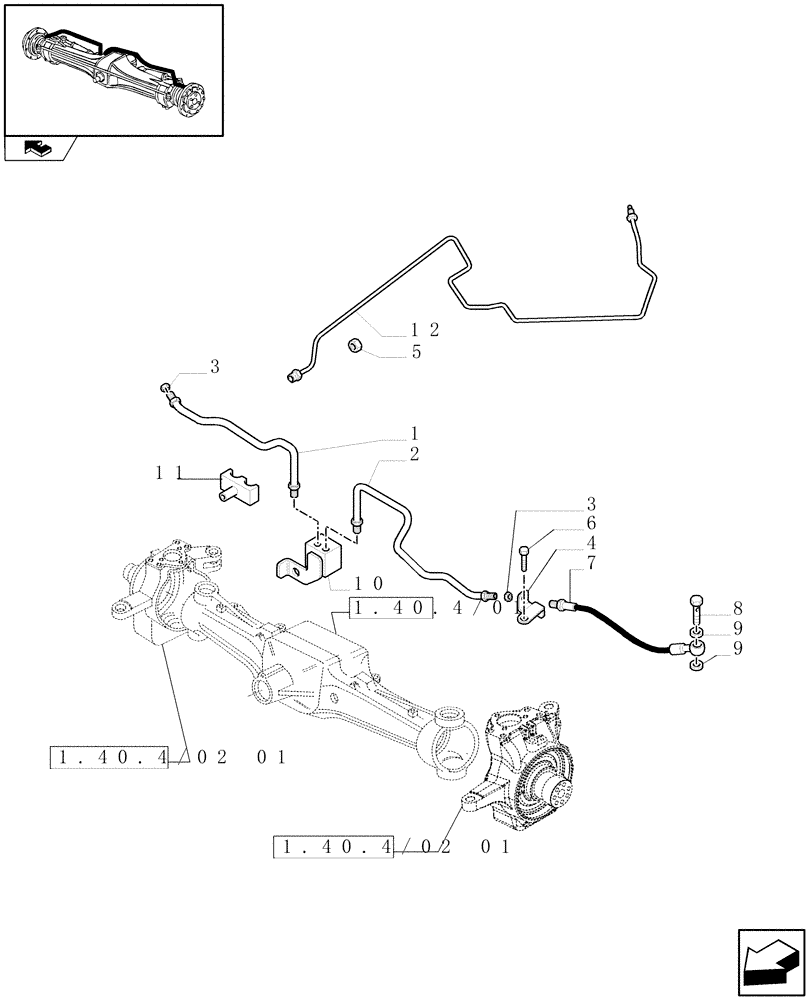

Запчасти Case IH MAXXUM 115 (1.40.4/14[02]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BRAKES PIPES (VAR.330426) (04) - FRONT AXLE & STEERING

1

87587725

BRAKE LINE

RH

1шт.

2

87587713

BRAKE LINE

LH

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

4

87571108

BRACKET

LH

1шт.

5

10726621

THIN NUT,Thin, M18 x 1.5, Cl 05

1шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

295MM

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

12MM

4шт.

10

87611523

BRACKET

1шт.

11

14575580

CLAMP BRACKET

3шт.

12

47125560

TUBE

1шт.
