(1.40.4/10) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - GEARS AND DIFFERENTIAL AXLE (VAR.330426)

Запчасти Case IH MAXXUM 115 (1.40.4/10) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - GEARS AND DIFFERENTIAL AXLE (VAR.330426) (04) - FRONT AXLE & STEERING

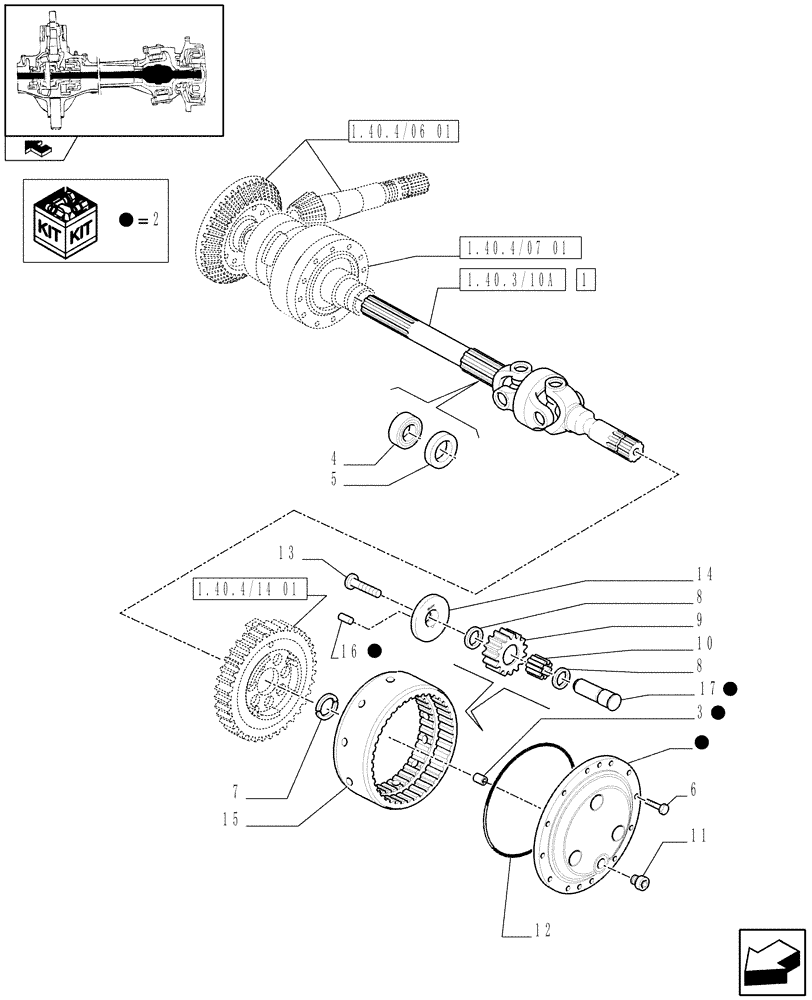

Схема запчастей Case IH MAXXUM 115 - (1.40.4/10) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - GEARS AND DIFFERENTIAL AXLE (VAR.330426) (04) - FRONT AXLE & STEERING
15
2
4
5
1
16
7
2
11
1.40.4/06 01
home
1.40.3/10a
1.40.4/14 01
1.40.4/07 01
12
2
2
9
8
10
3
6
2
2
8
14
17
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87743319

SHAFT

ASSY, LH

1шт.

1

87743318

SHAFT

ASSY, RH

1шт.

2

87473022

PLANET CARRIER

ASSY

2шт.

3

87604978

BUSHING

2шт.

4

87349670

SEAL,42mm ID x 62mm OD x 23mm Thk

2шт.

5

87598115

SPACER

2шт.

6

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

7

87525785

RING

2шт.

8

87330360

THRUST WASHER

12шт.

9

87330345

IDLER PINION

6шт.

10

87330366

ROLLER BEARING,41.4mm ID x 51.4mm OD x 35.5mm W

6шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

D=30

2шт.

12

14469481

O-RING,10.984" ID x 11.262" OD x 0.139"

2шт.

13

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

6шт.

14

87681967

SPACER

6шт.

15

87332016

RING GEAR

2шт.

16

10333210

DOWEL,M4 x 10.00mm

6шт.

17

87471121

PIN

Incl. 16

6шт.
