(1.40.4/01) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BOX (VAR.330426)

Запчасти Case IH MAXXUM 115 (1.40.4/01) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BOX (VAR.330426) (04) - FRONT AXLE & STEERING

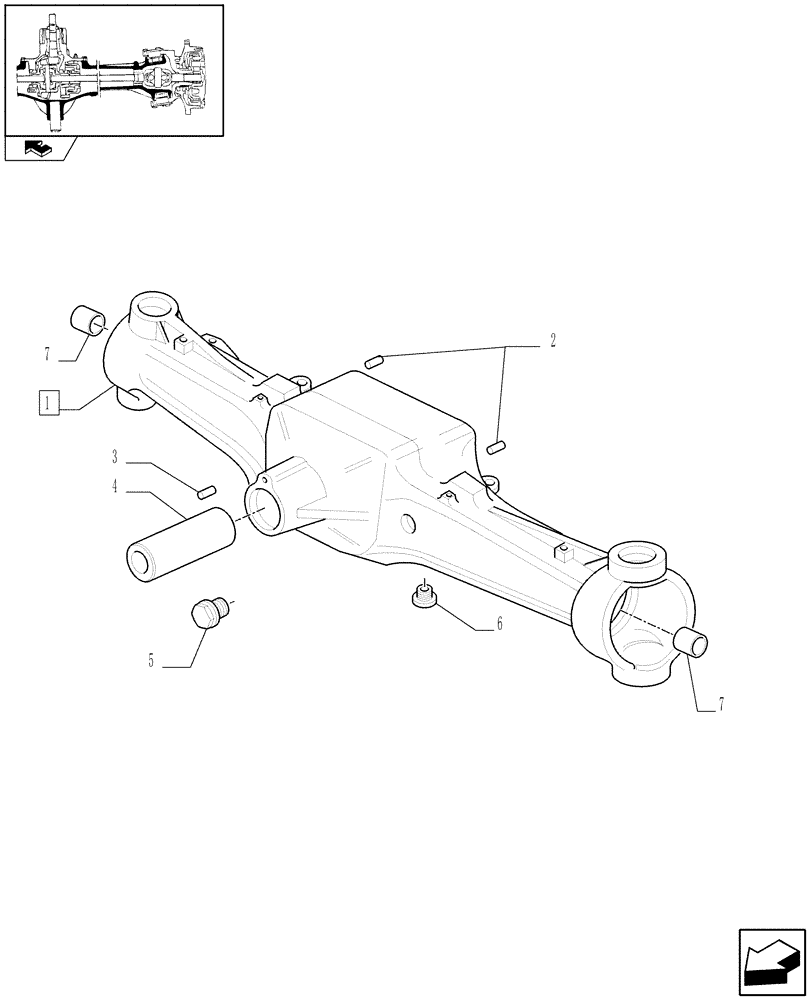

Схема запчастей Case IH MAXXUM 115 - (1.40.4/01) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BOX (VAR.330426) (04) - FRONT AXLE & STEERING
3
4
5
1
home
2
6
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87633677

AXLE HOUSING

Incl. Ref. 2, 3, 4, 7

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

14324413

PLUG,M22 x 1.5

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42 x 46 x 28

2шт.
