Запчасти Case IH MAXXUM 115 (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL

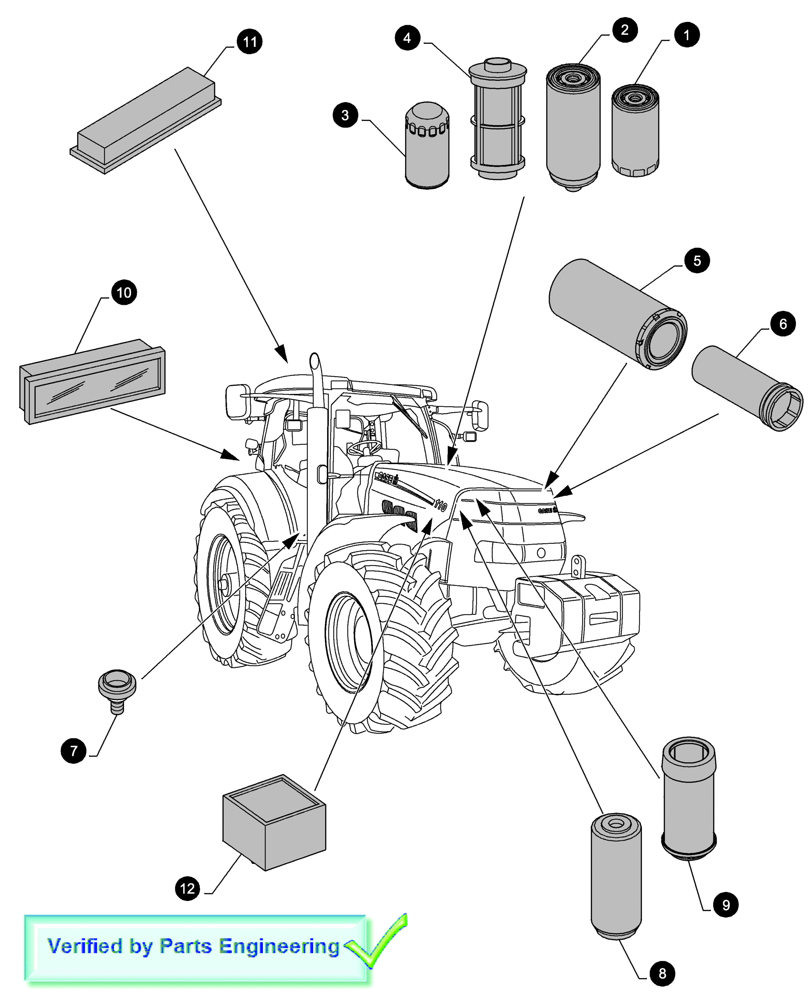

Схема запчастей Case IH MAXXUM 115 - (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL
4
7
1
12
5
6
10
3
11
8
9
2

Артикул

Название

Примечание

Количество

1

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

on Engine

1шт.

2

84170818

FUEL FILTER,96.2mm OD x 183mm L, M16 x 1.5 - 6H, W/ WIF Sensor (M10)

, Serial Range: -710158

1шт.

2

84278636

FUEL FILTER,96.2mm OD x 183mm L, M16x1.5 - 6H, W/ WIF Sensor (M14)

, Start Serial: 710159

1шт.

3

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

4

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

in Line

1шт.

5

87704248

AIR FILTER,105.9mm ID x 207.6mm OD x 409.5mm L

Outer

1шт.

Standard Equipment

1шт.

5

82034629

AIR FILTER

Outer

1шт.

Valid with Pre-Cleaner Spin Tube, VAR. 332189-333189

1шт.

6

87683000

AIR FILTER,Safety, 108.5mm OD x 403.1mm L

Inner

1шт.

7

9636958

BREATHER

Transmission

1шт.

8

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

Transmission, Lubrication

1шт.

9

47617638

FILTER

1шт.

10

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

11

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Fresh Air

1шт.

12

336430A1

FUEL FILTER

30 Microns, Water Separator

1шт.

Valid with VAR. 330103 - Heavy Duty Fuel Filter - only for 6 cylinder models

1шт.

Выбрано товаров: 17
