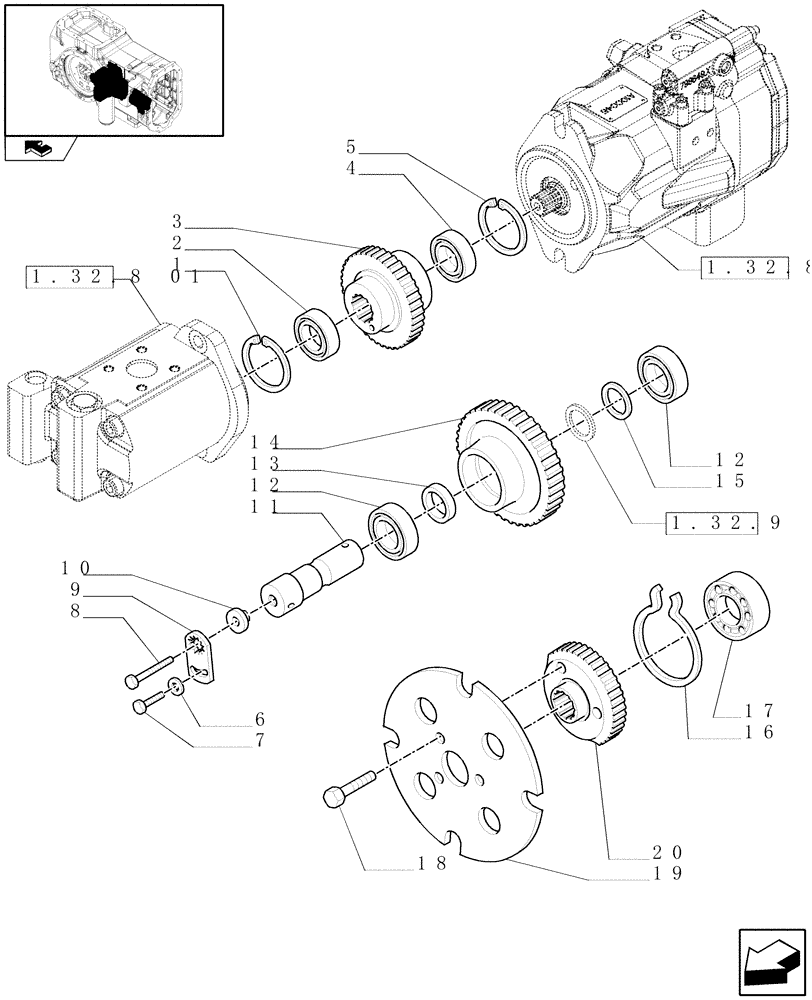

Запчасти Case IH MAXXUM 115 (1.32.9[01]) - HYDRAULIC PUMPS GEARS (03) - TRANSMISSION

1

11061976

SNAP RING,M80, Int

1шт.

2

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

40 x 80 x 18

1шт.

3

47126607

DRIVEN GEAR,28T

1шт.

4

5186964

BALL BEARING,55mm ID x 100mm OD x 21mm W

55 x 100 x 21

1шт.

5

11062976

SNAP RING,Int, M100 x 3

1шт.

6

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

7

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

8

15972831

SCREW,M10 x 1.25 x 150mm

M10 x 1.25 x 150

1шт.

9

5198177

PLATE

1шт.

10

5197772

RING

1шт.

11

47124774

PIN,30mm OD x 124.7mm L

1шт.

12

26800120

TAPERED BEARING,30mm x 62mm x 21.25mm

30 x 62 x 21.25

2шт.

13

5191844

SPACER,30.4mm ID x 37.3mm OD x 8.3mm L

1шт.

14

5191840

GEAR,45T

1шт.

15

5197777

SPACER,30.5mm ID x 38mm OD x 3.3mm L

1шт.

16

5192305

SNAP RING,M80.6, Ext

1шт.

17

5198391

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

18

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

19

5195980

DISC

1шт.

20

47131427

GEAR,42T

1шт.
