(1.32.8[02]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - OIL FILTER

Запчасти Case IH MAXXUM 115 (1.32.8[02]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - OIL FILTER (03) - TRANSMISSION

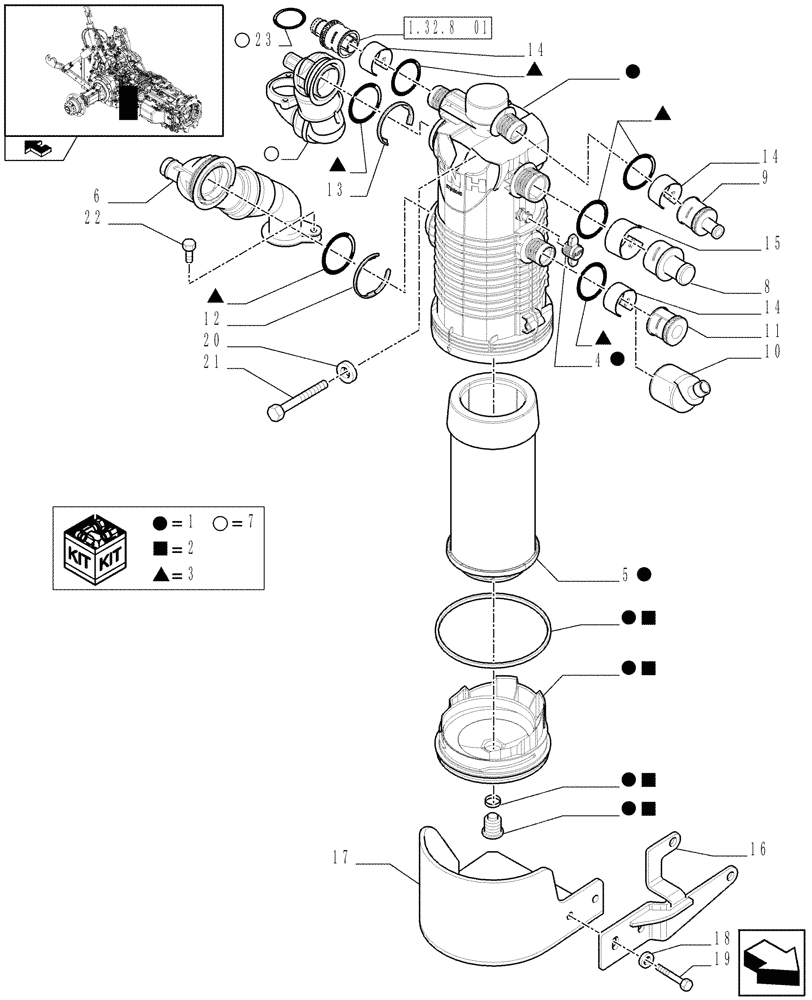

Схема запчастей Case IH MAXXUM 115 - (1.32.8[02]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - OIL FILTER (03) - TRANSMISSION
home
3
1
7
3
2
11
1
21
14
1
12
20
14
14
3
4
1
18
1
2
3
10
6
23
3
9
1
2
19
1
5
2
22
13
3
17
2
1
3
1
16
15
2
1
8
1.32.8 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87313049

FILTER ASSY

1шт.

2

87705159

FILTER COVER

1шт.

3

87705156

SEAL KIT

1шт.

4

87705160

ARRESTER

1шт.

5

47617638

FILTER

1шт.

6

84177407

PIPE

1шт.

7

87395841

TUBE

1шт.

8

84190077

HYD CONNECTOR

1шт.

9

87330801

HYD CONNECTOR,21mm D x 12.5mm D

1шт.

10

87330808

ELBOW,45 Deg, 21mm - 12.5mm ID

1шт.

11

87330798

PLUG,46mm ID

1шт.

12

87381695

CIRCLIP,8mm Thk

1шт.

13

87381696

SNAP RING,8mm Thk, Ext

1шт.

14

84121298

SNAP RING,30mm Thk, Ext

3шт.

15

87330755

STOP DEVICE

1шт.

16

84235013

SUPPORT

1шт.

17

84233244

COVER

1шт.

18

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

19

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

20

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

21

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

2шт.

22

87687675

BOLT,M8 x 1.25 x 32mm, Cl 8.8

1шт.

23

87705157

SEAL

1шт.
