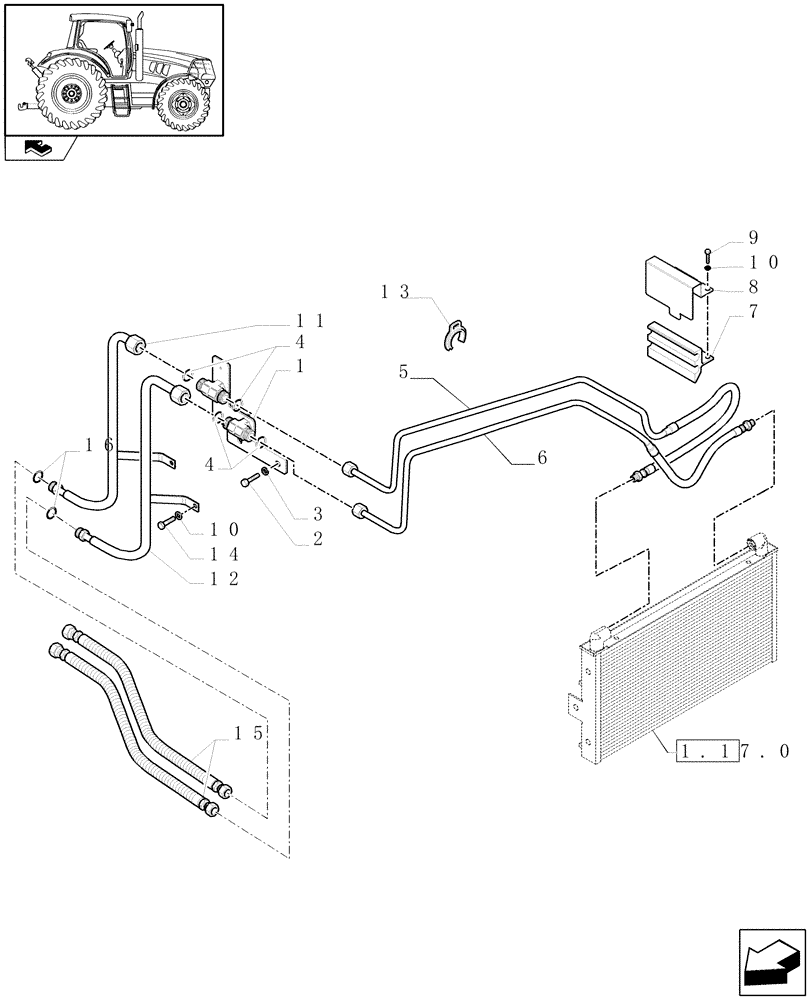

Запчасти Case IH MAXXUM 115 (1.29.7/01[01]) - TRANSMISSION OIL COOLER - PIPES (03) - TRANSMISSION

1

84136405

HOLDER

Incl. 4

1шт.

2

11112421

SCREW,Hex, M12 x 30mm, Cl 8.8

3шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

4

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

5

87617966

HYD TUBE,18 mm OD

1шт.

6

87650251

HYD TUBE,18 mm OD

1шт.

7

87652575

SUPPORT

1шт.

8

87649791

COVER

1шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

3шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

11

87542132

HYD TUBE,18 mm OD x 468, 257 mm L

Incl.16

1шт.

12

84196817

HYD TUBE,14 mm ID x 16 mm OD

Incl.16

1шт.

13

87363477

CLIP

2шт.

14

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

15

82034720

HYDRAULIC HOSE,12.7mm ID x 710mm L, SAE 100R1

Incl.16

2шт.

16

81845038

O-RING,0.5" ID x 0.07" Thk

2шт.
