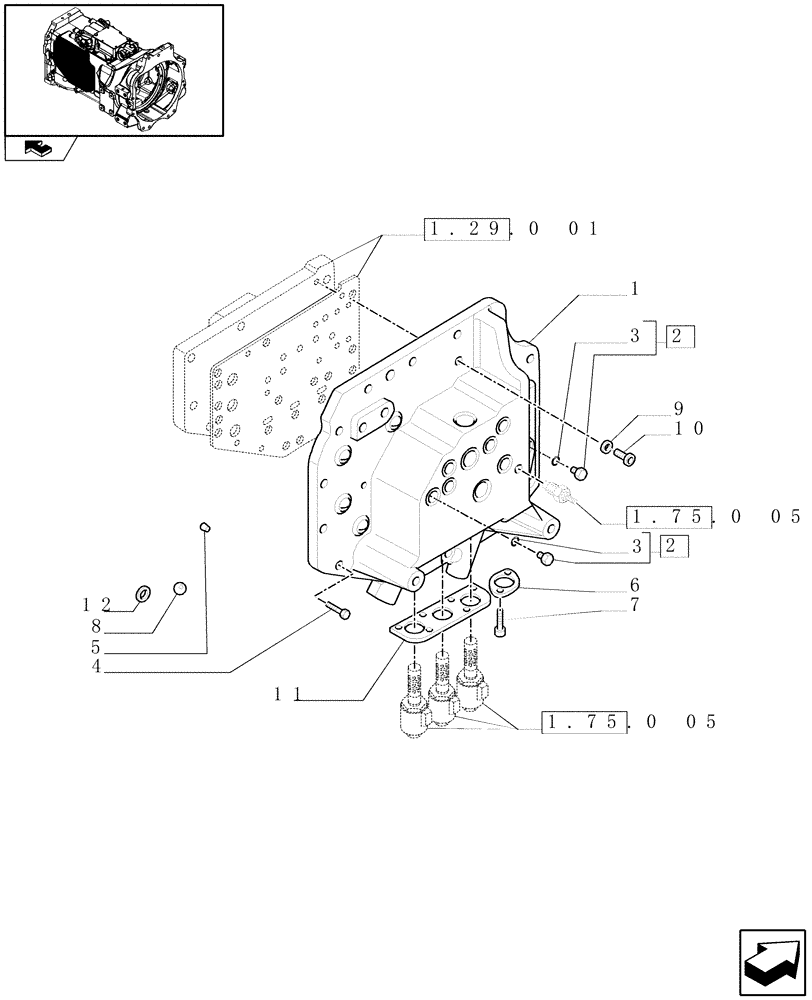

Запчасти Case IH MAXXUM 115 (1.29.0[02]) - TRANSMISSION LUBRICATION CONTROL VALVE COVER (03) - TRANSMISSION

1

47132363

COVER

1шт.

2

82857995

PLUG,7/16" - 20 ORB

8шт.

3

82857994

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

8шт.

4

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

16шт.

5

82001857

RESTRICTOR

4шт.

6

5194826

BRACKET

1шт.

7

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

8

82895053

BALL

3/8

5шт.

9

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

10

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

11

5198334

PLATE

1шт.

12

81845038

O-RING,0.5" ID x 0.07" Thk

4шт.
