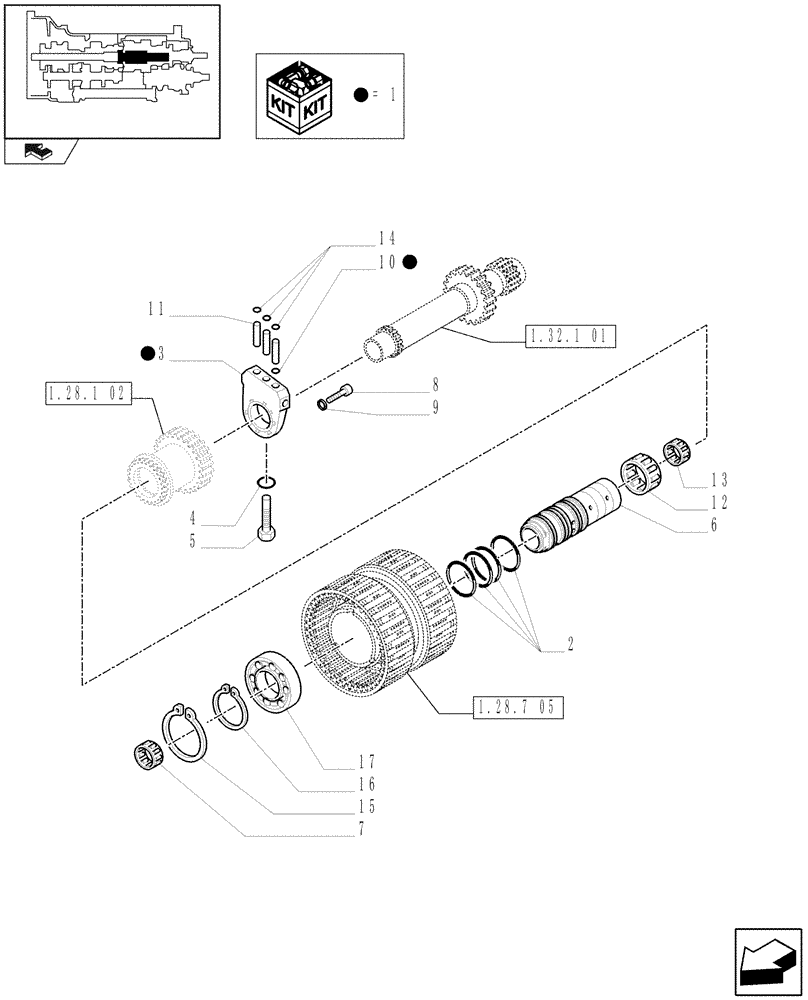

Запчасти Case IH MAXXUM 115 (1.28.7[06A]) - TRANSMISSION 16X16 OR 17X16 - SPEED ENGAGEMENT REAR CLUTCH - SUPPORT AND MANIFOLD - D6835 (03) - TRANSMISSION

1

47136794

MANIFOLD

ASSY

1шт.

2

5197519

SEAL,Split, 80.61mm ID x 86.01mm OD x 1.93mm Thk

4шт.

3

47128751

MANIFOLD

Incl. 2

1шт.

4

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

81869155

PIN,16.74mm OD x 96mm L

1шт.

6

47136723

SUPPORT

1шт.

7

81863573

BEARING ASSY,Needle, 50mm ID x 58mm OD x 19.7mm W

1шт.

8

14305374

SCREW,M6 x 20mm, Cl 12.9, Full Thd

4шт.

9

11194371

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

4шт.

10

47128758

FRICTION WASHER

2шт.

11

82850838

TUBE,14.3 mm OD, 76 mm Length

3шт.

12

81863561

BEARING ASSY,80mm ID x 86mm OD x 19.8mm W

1шт.

13

81864006

BEARING ASSY,50mm ID x 58mm OD x 34.8mm W

1шт.

14

83925620

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

6шт.

15

82935813

SNAP RING

1шт.

16

81863364

CIRCLIP

1шт.

17

81864036

BEARING ASSY,69.98mm ID x 89.98mm OD x 9.85mm W

1шт.
