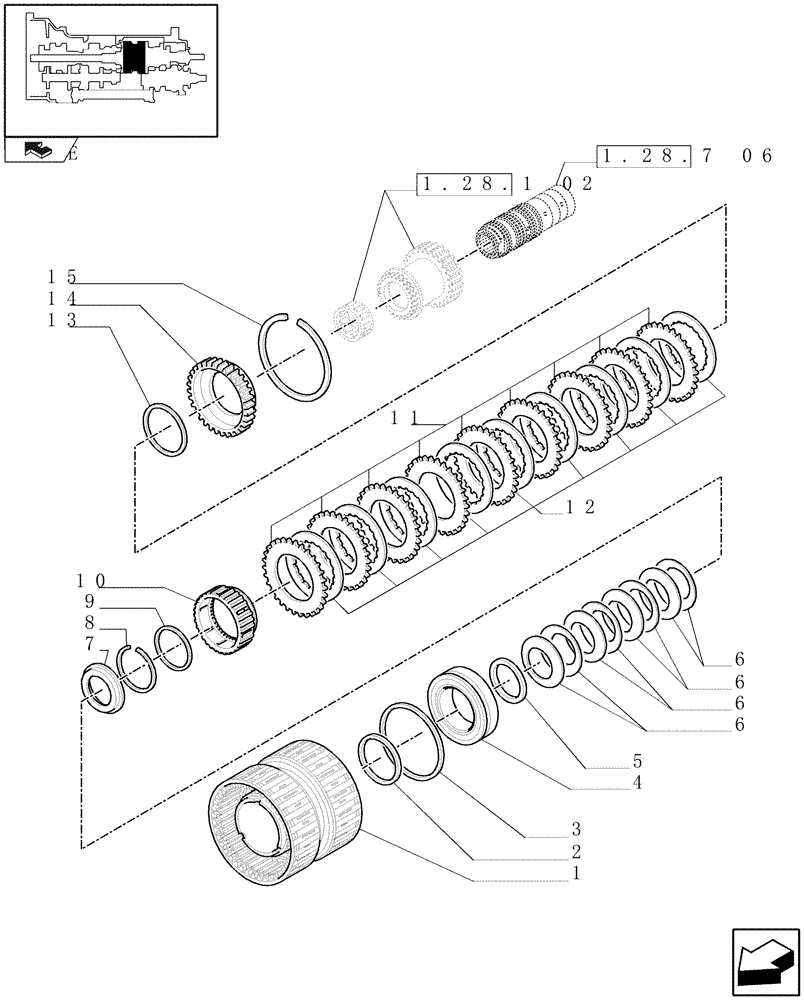

Запчасти Case IH MAXXUM 115 (1.28.7[05]) - TRANSMISSION 16X16 OR 17X16 - SPEED ENGAGEMENT REAR CLUTCH - HOUSING AND C4 DISKS - C6835 (03) - TRANSMISSION

1

82036853

CLUTCH HOUSING

1шт.

2

81866186

SEAL,90.28mm ID x 100.28mm OD x 4.8mm Thk

1шт.

3

81865036

SEAL,131.70mm ID x 6.10mm Thk

1шт.

4

47126916

PISTON

1шт.

5

81865529

SPACER,100.2mm ID x 112.3mm OD x 1.5mm L

1шт.

6

81864187

SPRING

8шт.

7

81865531

RETAINER,100.2mm ID x 112.4mm OD x 4mm Thk

1шт.

8

81865530

CIRCLIP

1шт.

9

81864186

THRUST WASHER,80.3mm ID x 102mm OD x 2mm Thk

1шт.

10

81863385

HUB

1шт.

11

5199723

CLUTCH PLATE

1.77-1.83MM Thick

1шт.

11

5199724

CLUTCH PLATE

1.97-2.03MM Thick

1шт.

11

82002190

CLUTCH PLATE

2.18-2.22MM Thick

1шт.

12

87704110

CLUTCH PACK

9шт.

13

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

14

82002243

CLUTCH DRIVING PLATE

1шт.

15

81863363

SNAP RING

1шт.
