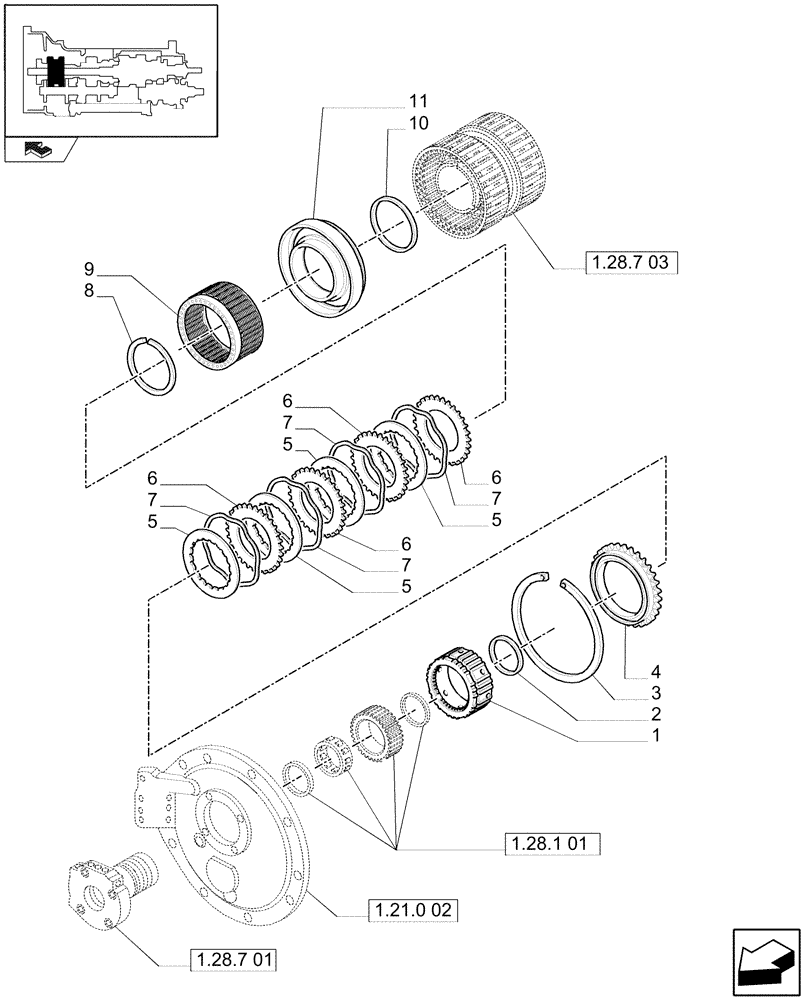

Запчасти Case IH MAXXUM 115 (1.28.7[02]) - TRANSMISSION 16X16 OR 17X16 - SPEED ENGAGEMENT FRONT CLUTCH - C1 DISKS (03) - TRANSMISSION

1

47136599

HUB

1шт.

2

47126732

SHOULDER

1шт.

3

5162251

CIRCLIP,142.5mm ID

1шт.

4

47136597

NOTCHED DISK

1шт.

5

5199726

NOTCHED DISK,114.78mm ID x 143.25mm OD x 1.65mm Thk

5шт.

6

47136596

NOTCHED DISK,119.6mm ID x 152.6mm OD x 2.2mm Thk

5шт.

7

81864341

SPRING,148.35mm ID

5шт.

8

81863329

CIRCLIP

72MM

1шт.

9

81864398

SPRING

1шт.

10

47136601

GASKET,70.55 - 70.70mm ID x 78mm OD x 3.20mm Thk

1шт.

11

47136600

PISTON

1шт.
