Запчасти Case IH MAXXUM 115 (1.28.7[01]) - TRANSM. 16X16 OR 17X16 - SPEED ENGAGEMENT FRONT CLUTCH - OIL SUPPLY AND LUBRICATION (03) - TRANSMISSION

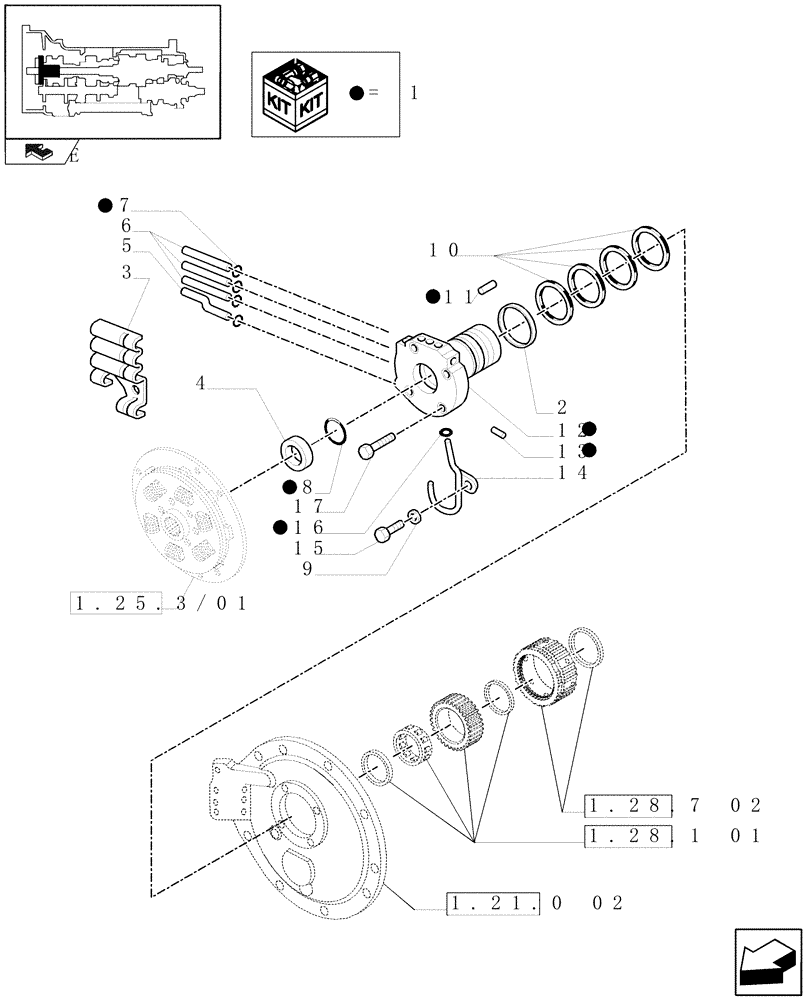

Схема запчастей Case IH MAXXUM 115 - (1.28.7[01]) - TRANSM. 16X16 OR 17X16 - SPEED ENGAGEMENT FRONT CLUTCH - OIL SUPPLY AND LUBRICATION (03) - TRANSMISSION
1
9
1
17
16
3
7
1
1
4
1
11
6
14
13
1
8
5
1.25.3/01
home
1.28.7 02
1.21.0 02
1.28.1 01
2
12
15
10
1

Артикул

Название

Примечание

Количество

1

47136814

MANIFOLD

ASSY

1шт.

2

83911411

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

3

87347769

BRACKET

Oil Tube

1шт.

4

87347725

SEAL,34.1mm ID x 50mm OD x 10mm Thk

36 x 50 x 10

1шт.

5

81871372

TUBE,34, 29.3" Length

1шт.

6

81871373

TUBE,34, 29.3 mm Length

3шт.

7

81863108

SEAL

4шт.

8

47131203

RING,36.04mm ID x 47.06mm OD x 4mm Thk

1шт.

9

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

10

5197518

SEALING RING

SEALRING

4шт.

11

81872032

PLUG

Cup

6шт.

12

47136813

1шт.

13

81863085

PLUG

1шт.

14

81871374

TUBE,42, 16 mm Length

Lube Oil Inlet

1шт.

15

14307330

HEX SOC SCREW,M10 x 1.25 x 20mm, Cl 10.9

2шт.

16

81863105

SEAL

1шт.

17

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

Выбрано товаров: 17
