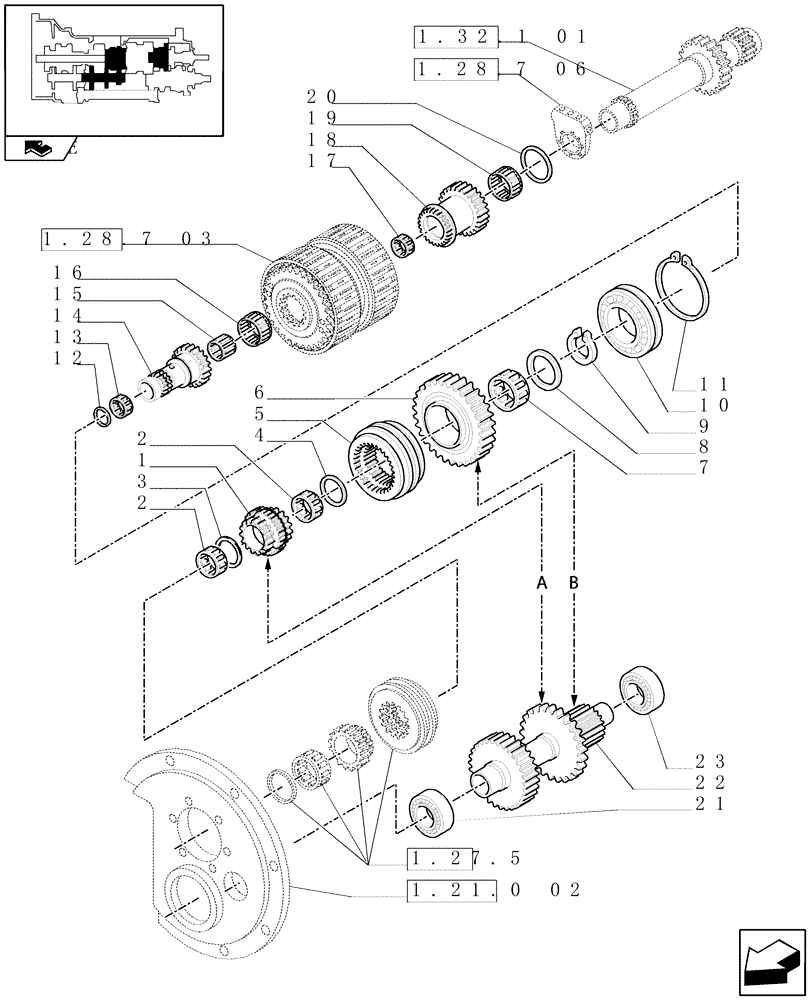

Запчасти Case IH MAXXUM 115 (1.28.1[02]) - TRANSMISSION 16X16 OR 17X16 - GEARSHIFTS GEARS (03) - TRANSMISSION

1

47126622

GEAR

1шт.

2

81863567

BEARING ASSY,55mm ID x 65mm OD x 17.8mm W

2шт.

3

81864253

CIRCLIP

1шт.

4

47126700

SNAP RING

D=55

1шт.

5

47126058

SYNCHRONIZER

D=90, 1-4/5-8 Speed

1шт.

6

47126621

DRIVEN GEAR

1шт.

7

81863566

BEARING ASSY,59.99mm ID x 65mm OD x 29.8mm W

1шт.

8

47127448

SNAP RING

D=65

1шт.

9

81863986

CIRCLIP

111.7MM

1шт.

10

81863436

BEARING ASSY,75mm ID x 115mm OD x 20mm W

1шт.

11

11070576

SNAP RING,M75, Ext

1шт.

12

47126707

SPACER

1шт.

13

81863099

BEARING ASSY,35mm ID x 45mm OD x 19.8mm W

1шт.

14

47131847

DRIVEN SHAFT

1шт.

15

81863564

BEARING ASSY,Needle, 35.02mm ID x 45mm OD x 30mm W

1шт.

16

81863669

BEARING ASSY,Needle, 45mm ID x 52mm OD x 20mm W

1шт.

17

81863561

BEARING ASSY,80mm ID x 86mm OD x 19.8mm W

1шт.

18

87396958

GEAR

1шт.

18

81863772

GEAR

1шт.

30 Km/H for Transmission 16x16, VAR.332245

1шт.

19

81863562

BEARING ASSY,80mm ID x 88mm OD x 29.8mm W

1шт.

20

81863743

THRUST WASHER,Grooved, 80.2mm ID x 96.2mm OD x 2.1mm Thk

1шт.

21

47127105

BEARING, ROLLER, CYL,25mm ID x 52mm OD x 18mm W

25 x 52 x 18

1шт.

22

47126623

SHAFT

1шт.

23

47126933

BEARING, ROLLER, CYL,30mm ID x 62mm OD x 20mm W

30 x 62 x 20

1шт.
