Запчасти Case IH MAXXUM 115 (1.21.5/01) - FRONT WEIGHT CARRIER AND 4/8/16 WEIGHTS WITH PULL HOOK (VAR.330219-330220-330221) (03) - TRANSMISSION

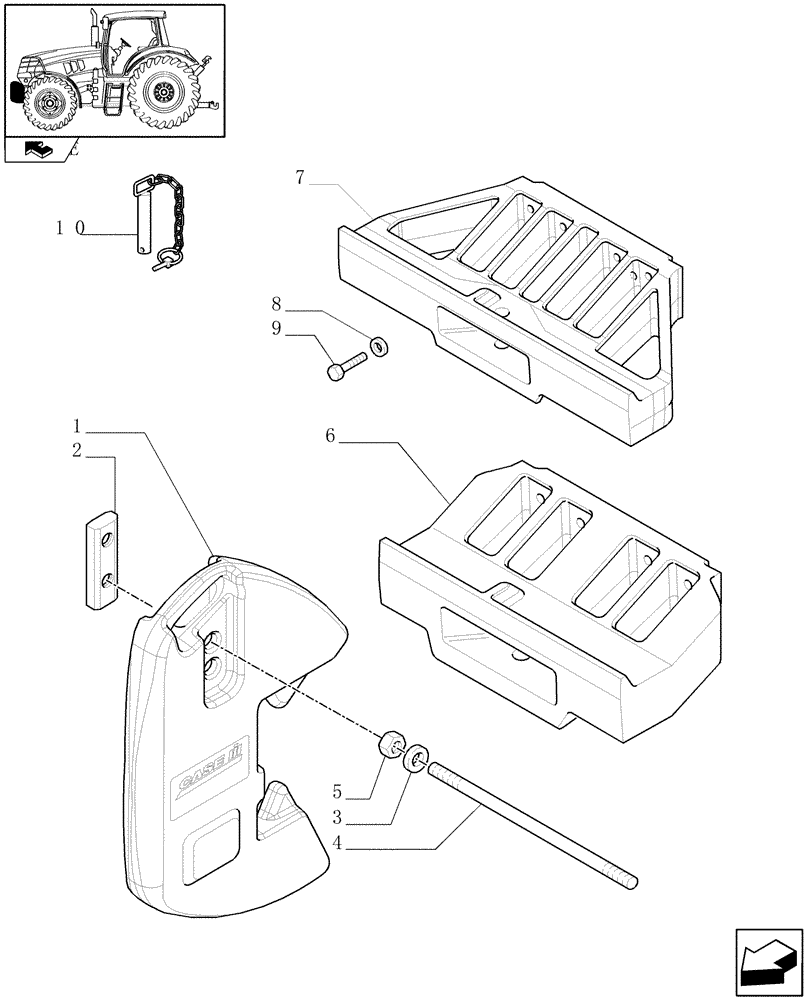

Схема запчастей Case IH MAXXUM 115 - (1.21.5/01) - FRONT WEIGHT CARRIER AND 4/8/16 WEIGHTS WITH PULL HOOK (VAR.330219-330220-330221) (03) - TRANSMISSION
7
10
6
home
4
1
8
2
5
9
3

Артикул

Название

Примечание

Количество

1

86988727

WEIGHT,45Kg

1шт.

Q.ty=4 for VAR.330219; Q.ty=8 for VAR.330220; Q.ty=16 for VAR.330221

1шт.

2

229483A2

RETAINER

1шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

2шт.

4

82028017

ROD

M16 x 270

1шт.

With 4 Weights, VAR.330219

1шт.

4

82028018

ROD,M16 x 2 x 500.00mm, ZND

M16 x 500

1шт.

With 8 Weights, VAR.330220

1шт.

4

44995059

ROD,M16 x 2 x 950.00mm, ZND

M16 x 950

1шт.

With 16 Weights, VAR.330221

1шт.

5

82011968

NUT,Hex, M16, 2mm Pitch, 13.00mm High, ZND

4шт.

6

82031499

WEIGHT CARRIER

VAR.330219-330220

1шт.

With 4 Weights, VAR.330219

1шт.

With 8 Weights, VAR.330220

1шт.

7

82031491

WEIGHT CARRIER

VAR.330221

1шт.

With 16 Weights, VAR.330221

1шт.

8

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

9

16050821

BOLT,Hex, M20 x 90mm, Cl 8.8

6шт.

10

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

Выбрано товаров: 19
