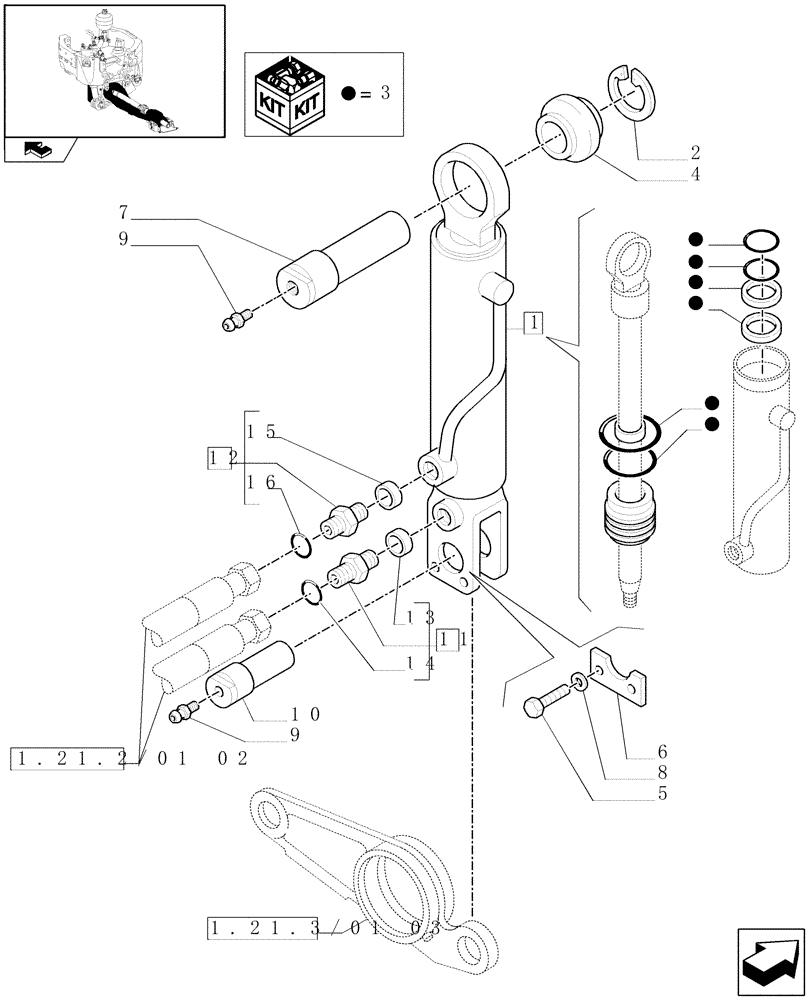

Запчасти Case IH MAXXUM 115 (1.21.3/01[02]) - (CL.4) SUSPENDED FRONT AXLE - CYLINDER AND RELEVANT PARTS (VAR.330429-330430) (03) - TRANSMISSION

1

87664861

CYLINDER,Double Acting, 55mm Rod, 152mm Stroke

Incl. 2-4, 11, 12

1шт.

2

11061076

SNAP RING,M62, Int

1шт.

3

87316817

SEAL KIT

1шт.

4

82016695

SPHERICAL BEARING,60mm ID x 62mm OD x 35mm W

1шт.

5

83962654

SCREW,Hex, M10 x 1.5 x 20mm, Gr 8.8

2шт.

6

82016870

BRACKET

1шт.

7

87340146

PIN,34mm OD x 89.7mm L

1шт.

8

85700672

LOCK WASHER,M10

2шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

87311698

PIN,34mm OD x 68mm L

1шт.

11

82019639

HYD CONNECTOR

1шт.

12

82016408

HOUSING

1шт.

13

82019813

SEAL,23.9mm ID x 29.2mm OD x 1.5mm Thk

1шт.

14

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
