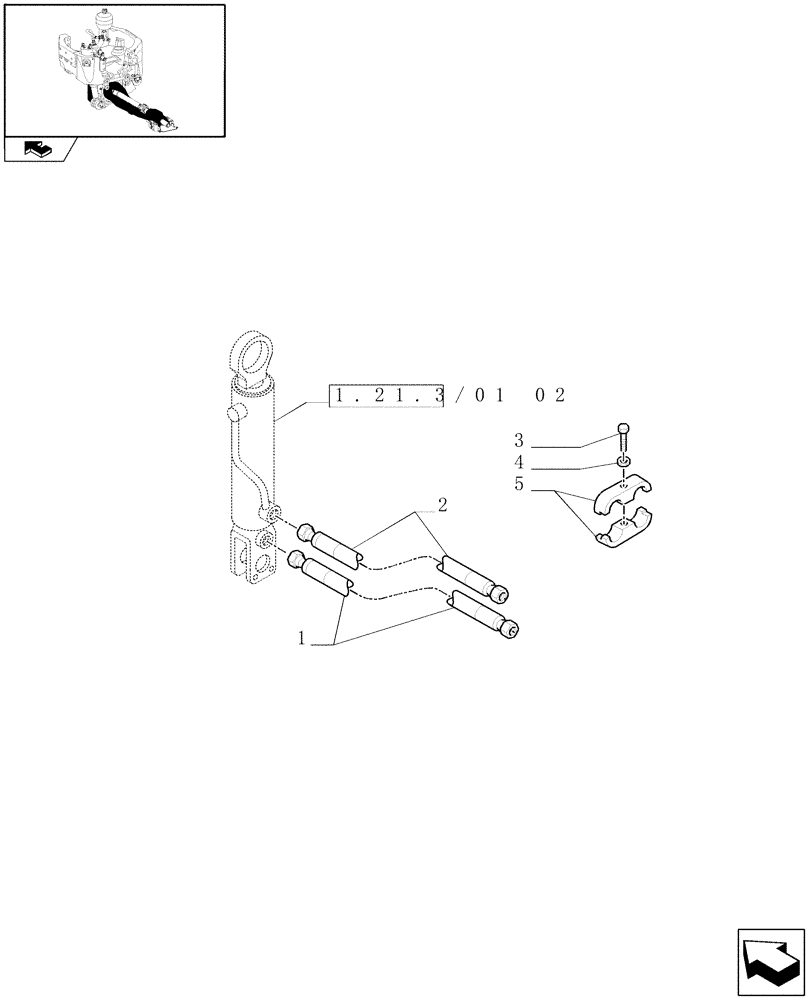

Запчасти Case IH MAXXUM 115 (1.21.2/01[02]) - (CL.4) SUSPENDED FRONT AXLE - PIPES (VAR.330429-330430) (03) - TRANSMISSION

1

87618806

FLEXIBLE HOSE,19.10mm ID x 1295mm L, SAE 100R16

1-3/16" x 12 and 1-3/16" x 12; length 1295mm

1шт.

2

87618803

HOSE ASSY.

1"-14 and 13/16"-16; length 1245mm, Serial Range: -C6868

1шт.

2

84347954

HOSE ASSY.,12.70mm ID x 1200mm L, SAE 100R16

, Start Serial: D6868

1шт.

3

11107621

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

4

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

5

82022172

CLAMP,2 Hoses

2шт.
