Запчасти Case IH MAXXUM 115 (1.21.2/01[01]) - (CL.4) SUSPENDED FRONT AXLE - SUSPENSION CONTROL VALVE AND PIPES (VAR.330429-330430) (03) - TRANSMISSION

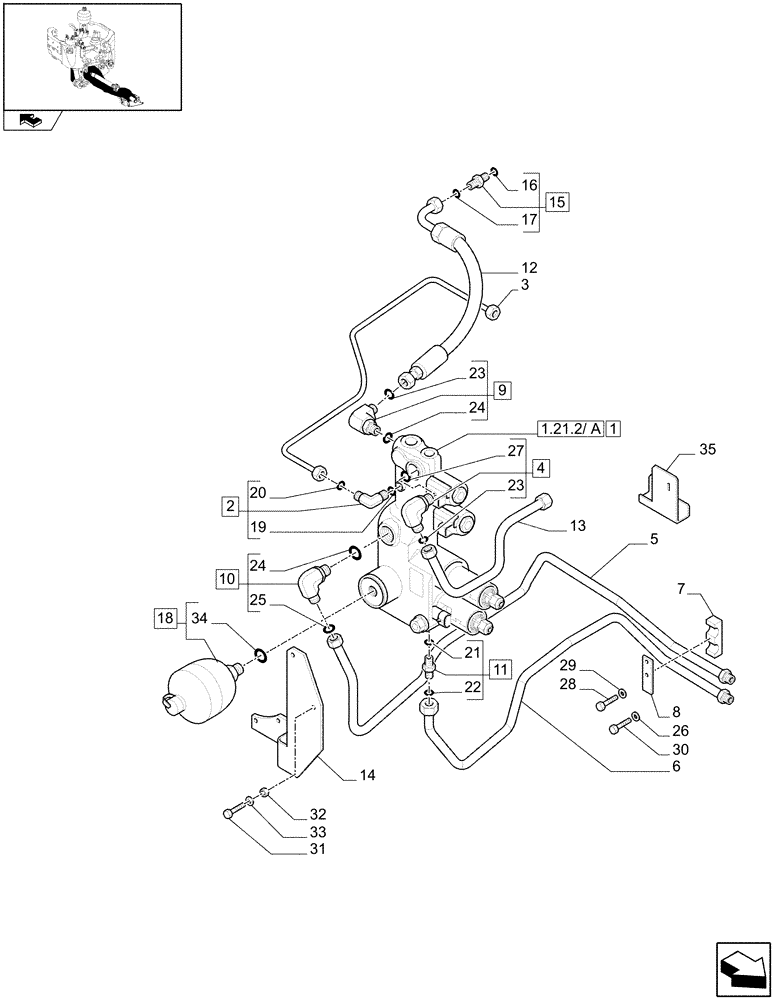

Схема запчастей Case IH MAXXUM 115 - (1.21.2/01[01]) - (CL.4) SUSPENDED FRONT AXLE - SUSPENSION CONTROL VALVE AND PIPES (VAR.330429-330430) (03) - TRANSMISSION
1
23
13
35
20
9
21
33
19
6
4
1.21.2/ a
10
5
22
27
23
28
1
17
15
24
29
18
2
31
34
32
26
1
25
3
7
16
8
24
30
12
14

Артикул

Название

Примечание

Количество

1

87636984

VALVE SECTION

1шт.

2

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

1шт.

3

84180863

PIPE

1шт.

4

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

5

87636964

PIPE

Inlet

1шт.

6

87636973

PIPE

Drain, Serial Range: -C7170

1шт.

6

84569235

PIPE

, Start Serial: D7170

1шт.

7

87636992

CLAMP BRACKET

2шт.

8

87636988

BRACKET

1шт.

9

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

1шт.

10

86579693

ELBOW,90 Degree, 1"-14 ORFS x M18 x 1.5 ORB

1шт.

11

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

1шт.

12

87636975

HOSE

Discharge

1шт.

13

87636977

TUBE

Supply

1шт.

14

87636978

SUPPORT

1шт.

15

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

1шт.

16

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

17

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

18

82025705

ACCUMULATOR

1шт.

19

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

20

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

22

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

23

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

25

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

26

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

27

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

28

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

29

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

30

15212521

BOLT,Hex, M6 x 35mm, Cl 8.8, Full Thd

2шт.

31

15541524

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

2шт.

32

16101521

NUT,M12 x 1.25, Cl 10

2шт.

33

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

34

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

35

84569231

SUPPORT

, Start Serial: D7170

1шт.

Выбрано товаров: 36
