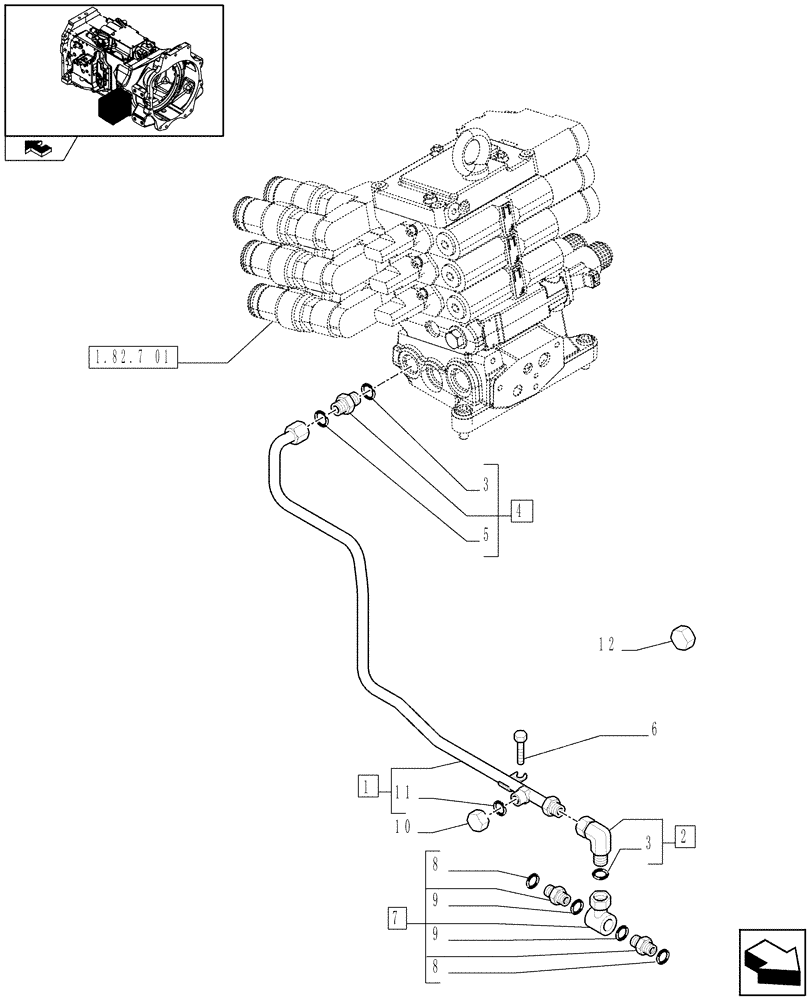

Запчасти Case IH MAXXUM 115 (1.21.2[03]) - (CL.3) SUSPENDED FRONT AXLE - PIPES (VAR.330414-330427) (03) - TRANSMISSION

1

84234683

HYD TUBE

Pressure, Supply, Serial Range: -C6870

1шт.

1

84295854

PIPE

, Serial Range: D6870-C6868

1шт.

1

84325309

HYD TUBE

, Start Serial: D6868

1шт.

2

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

6

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

1шт.

7

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

8

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

9

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

10

5189973

PLUG

1шт.

11

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

12

47123020

PLUG,Hex

13/16-16 UN

1шт.

12

83987627

CAP,1-14UN-2A

1"14 UN 2A

1шт.
