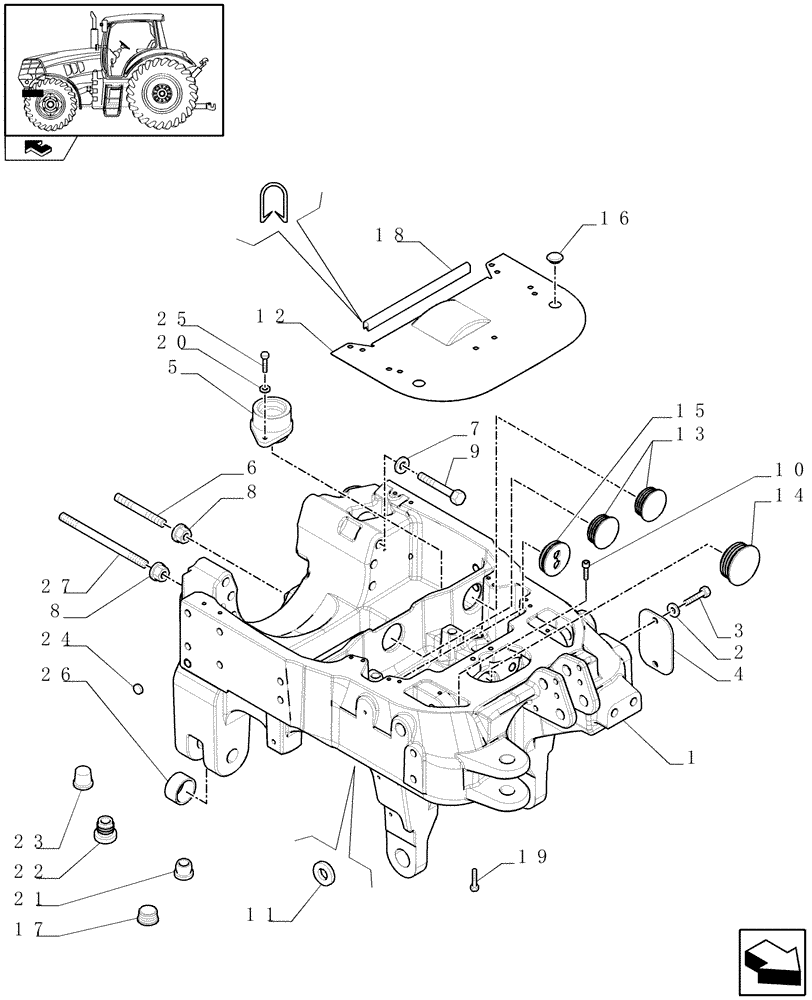

Запчасти Case IH MAXXUM 115 (1.21.1/03) - INTEGRATED FRONT HPL FOR FRONT AXLE SUSPENSION - AXLE SUPPORT (VAR.334648-335648-337831) (03) - TRANSMISSION

1

87661568

SUPPORT

, Serial Range: -C6912

1шт.

1

84380304

SUPPORT

, Start Serial: D6912

1шт.

2

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

3

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

4

87643929

PLATE

1шт.

5

82030470

SUPPORT

1шт.

6

87301866

STUD,M20 x 1.5 x 170mm, Cl 10.9

2шт.

7

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

6шт.

8

82023393

LOCK NUT

4шт.

9

82028028

BOLT,Hex, M20 x 1.5 x 118mm, Cl 12.9

1шт.

10

87302865

SET SCREW,M8 x 16mm, Cl 8.8

2шт.

11

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

11

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

11

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

11

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

11

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

11

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

11

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

11

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

11

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

11

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

11

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

11

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

12

87565348

COVER

1шт.

13

82023395

PLUG,60mm ID

2шт.

14

82027992

PLUG,80.00mm, 90.00mm OD, 32.00mm D

1шт.

15

82023398

PLUG

1шт.

16

47057762

SLEEVE,25mm ID x 36mm OD x 10mm L

2шт.

17

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

18

83964601

MOLDING,164mm L

2шт.

19

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

20

10516674

LOCK WASHER,M8

2шт.

21

87523187

PLUG,M12 x 1.5

2шт.

22

83908579

PLUG,M7.62

2шт.

23

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.

24

82037171

PLASTIC PLUG,22.00mm, 32.00mm OD

4шт.

25

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

26

82018767

SPACER,34mm ID x 44mm OD x 15.5mm L

2шт.

27

87333612

STUD,M20 x 1.5 x 295mm, Cl 12.9

1шт.
