Запчасти Case IH MAXXUM 115 (1.21.1/02) - INTEGRATED FRONT HPL - AXLE SUPPORT (VAR.333648-336831) (03) - TRANSMISSION

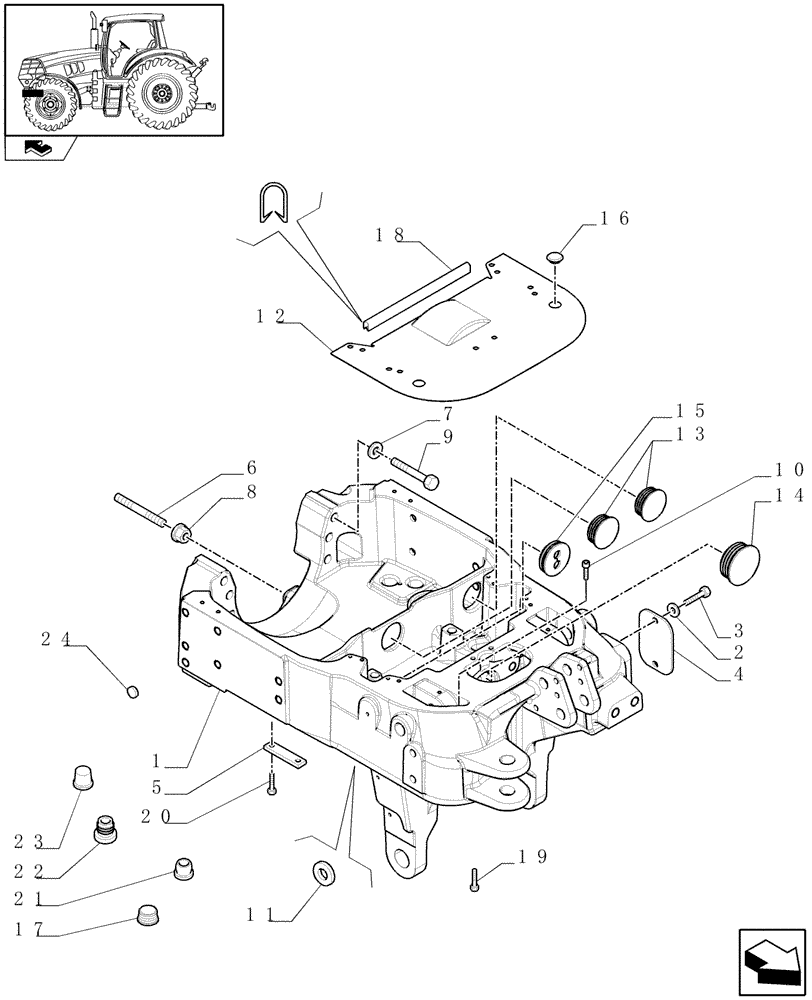

Схема запчастей Case IH MAXXUM 115 - (1.21.1/02) - INTEGRATED FRONT HPL - AXLE SUPPORT (VAR.333648-336831) (03) - TRANSMISSION
12
3
13
home
7
10
1
8
11
9
6
17
18
20
23
2
24
14
4
5
15
19
21
22
16

Артикул

Название

Примечание

Количество

1

87661567

SUPPORT

1шт.

2

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

3

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

4

87643929

PLATE

1шт.

5

87361847

SPACER,111mm L x 26mm W x 10mm Thk

2шт.

6

87301866

STUD,M20 x 1.5 x 170mm, Cl 10.9

2шт.

7

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

1шт.

8

82023393

LOCK NUT

2шт.

9

82029234

BOLT,Hex, M20 x 1.5 x 125mm, Cl 12.9

1шт.

10

87302865

SET SCREW,M8 x 16mm, Cl 8.8

2шт.

11

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

11

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

11

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

11

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

11

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

11

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

11

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

11

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

11

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

11

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

11

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

11

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

12

87565348

COVER

1шт.

13

82023395

PLUG,60mm ID

2шт.

14

82027992

PLUG,80.00mm, 90.00mm OD, 32.00mm D

1шт.

15

82023398

PLUG

1шт.

16

47057762

SLEEVE,25mm ID x 36mm OD x 10mm L

2шт.

17

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

18

83964601

MOLDING,164mm L

2шт.

19

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

20

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

4шт.

21

87523187

PLUG,M12 x 1.5

2шт.

22

83908579

PLUG,M7.62

2шт.

23

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.

24

82037171

PLASTIC PLUG,22.00mm, 32.00mm OD

4шт.

Выбрано товаров: 35
