Запчасти Case IH MAXXUM 115 (1.21.0[04]) - TRANSMISSION 16X16 OR 17X16 - REAR AXLE HOUSING, INNER PIPES AND BREATHERS (03) - TRANSMISSION

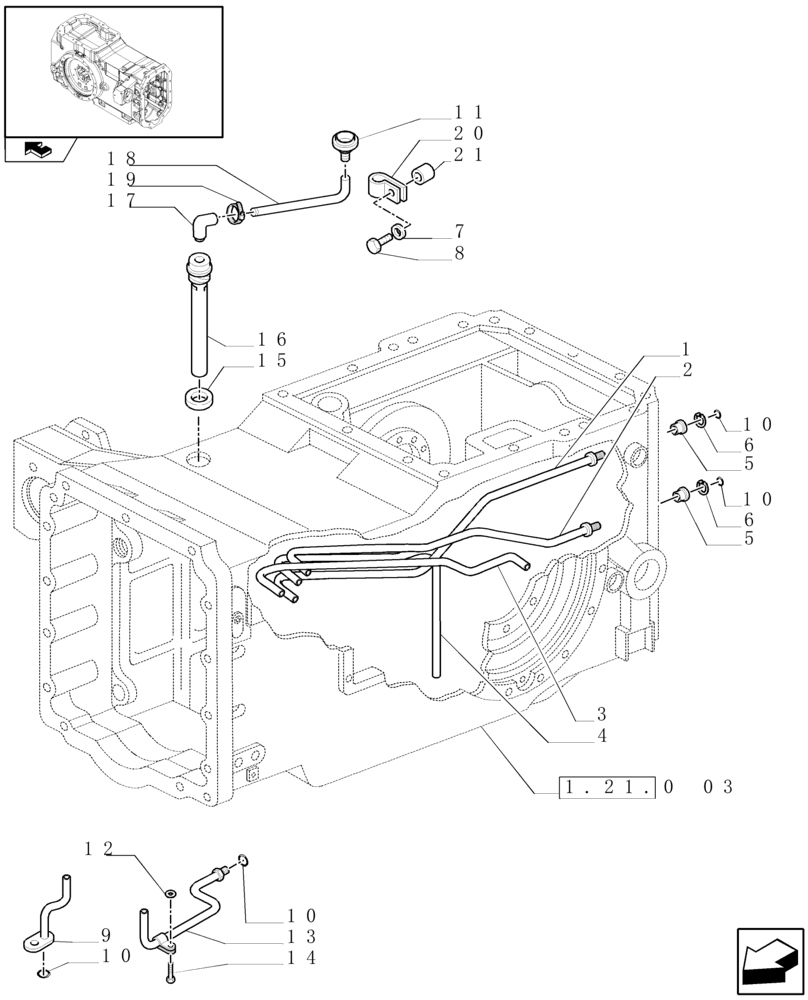

Схема запчастей Case IH MAXXUM 115 - (1.21.0[04]) - TRANSMISSION 16X16 OR 17X16 - REAR AXLE HOUSING, INNER PIPES AND BREATHERS (03) - TRANSMISSION
14
11
19
16
15
2
7
6
10
5
10
8
home
4
10
13
1
21
18
9
10
12
3
5
6
17
1.21.0 03
20

Артикул

Название

Примечание

Количество

1

5193856

TUBE

Supply P.T.O. Clutch

1шт.

2

5196279

TUBE

Brake P.T.O.

1шт.

3

5197048

TUBE

Diff. Lock

1шт.

4

5198214

HYD TUBE

4WD, Hdr. Clutch

1шт.

5

5186628

BUSHING,16mm ID x 22mm OD x 14mm L

2шт.

6

300625

SNAP RING,M16, Ext

2шт.

7

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

1шт.

8

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

9

47135779

TUBE

VAR.330908, 331908, 330909, 331909

1шт.

10

14453181

O-RING,0.489" ID x 0.07" Width

4шт.

11

9636958

BREATHER

Transmission

1шт.

12

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

13

47136932

TUBE

1шт.

14

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

14

15540124

SCREW,Hex, M12 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

15

10262160

SEAL,M28.4 x 34 x 2, Copper

1шт.

16

47133085

BREATHER

1шт.

17

47134073

PIPE

1шт.

18

82012599

FUEL HOSE,15.9mm ID x 800mm L

1шт.

19

82000599

CLAMP,22mm - 26mm

1шт.

20

87302117

CLAMP,18.5mm ID, 9mm Bolt Hole, P Type

1шт.

21

13611211

SPACER,8.5mm ID x 15mm OD x 23mm L

1шт.

Выбрано товаров: 22
